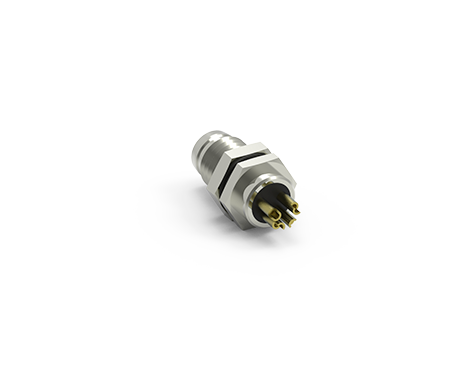

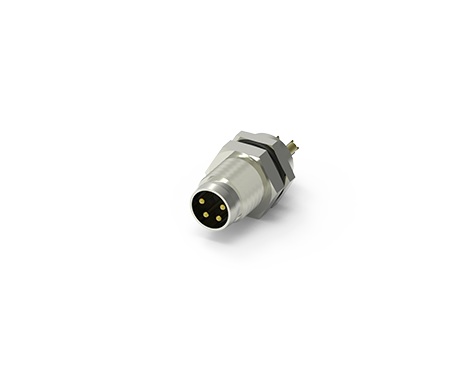

M8 A Code, Male, Straight Type, Rear Fastened
219A-XXMAF
M8 A Code Receptacle, Male Pins, Straight Type, Rear Fastened

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Share:
功能介紹
Panel Mount Ordering Instructions
industrial device
Standardized M8 circular connectors thread is widely used in sensors installation, industrial machinery, and automation applications. Easy to install with an IP67 protection rating ensuring secure and reliable protection against water and dust.

APPLICATION:
  • Industrial Machinery
  • Sensors Installation
  • Automotive Sensors
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             219A-03MAF             Pin Assignment 3pin3Pin
219A-04MAFPin Assignment 4pin4Pin
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             219A-05MAF             Pin Assignment 5pin5Pin
219A-05MAF-01Pin Assignment 5pin5Pin
219A-08MAFPin Assignment 8pin8Pin

規格介紹
ELECTRICAL
05.08 Pin Current Rating1.5A
05.08 Pin Voltage Rating30VAC/DC
04 Pin Current Rating3A
04 Pin Voltage Rating50VAC/60VDC
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
下載
類別標題大小文件類型下載
圖面219A-04MAF115 KBPDF: 工程用圖面Download
3D219A-04MAF165 KBRAR: 3D檔Download
圖面219A-05MAF111 KBPDF: 工程用圖面Download
圖面219A-05MAF-01118 KBPDF: 工程用圖面Download
圖面219A-08MAF111 KBPDF: 工程用圖面Download
圖面219A-03MAF107 KBPDF: 工程用圖面Download
