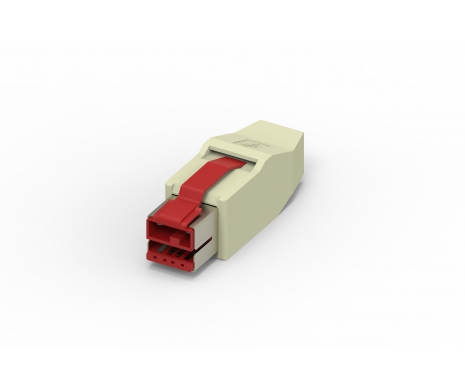

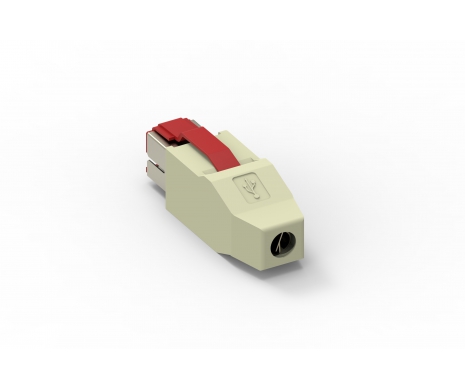

Powered USB, Plug for Cable, 24V, 10u'' Gold, [Red]
218A-24D01
Powered USB, Plug for Cable, 24V, 8 Pin, OD6.5, 10u'' Gold, [Red]
As an addition to the USB standard that allows for higher-power devices to obtain power through their USB host instead of requiring an independent power supply or external AC adapter. It is mostly used in point-of-sale equipment, such as receipt printers and barcode readers.
As an addition to the USB standard that allows for higher-power devices to obtain power through their USB host instead of requiring an independent power supply or external AC adapter. It is mostly used in point-of-sale equipment, such as receipt printers and barcode readers.
Share:
規格介紹
| Current Rating: USB Section | 1.5A |
|---|---|
| Current Rating: Powered Section | 3.0A |
| Voltage Rating: USB | 5.25V DC |
| Voltage Rating: Powered | 24V |
| Contact Resistance | 40mΩ Max. |
| Insulation Resistance | 1000MΩ at 500V DC |
| Dielectric Withstanding Voltage | 750V AC |
| Durability | 1,500 Cycle |
|---|---|
| Mating Force | 67N max. |
| UN-Mating Force | 10N max. |
| Operating temperature range | -20°C~+85°C |
|---|---|
| Storage temperature range | -20°C~+85°C |
| Recommend Temperature | 245°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 218A-24D01 | 175 KB | PDF: 工程用圖面 |  |
| 3D | 218A-24D01 | 421 KB | RAR: 3D檔 | |
