Dual Nano SIM Socket, Tray-Push Push
115U-B100

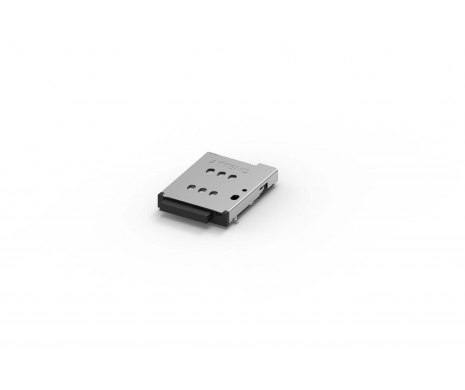

Dual Nano SIM Socket, Tray-Push Push, 6 Pin, Lock w/Switch, G/F

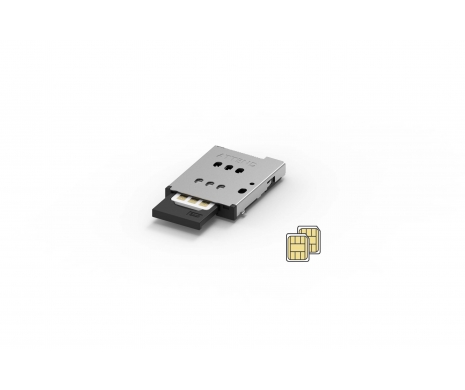

The 115U-B100 is a user-friendly, space-saving dual Nano SIM card connector with a push-push tray design, offering vibration resistance and continuous signal performance. Featuring a card friction lock and foolproof design, it ensures proper tray installation with SIM 1 facing up and includes a tray lock function for added stability and shock resistance.

***Patent Cert. No.: TWM625102, CN217036175U
Share:

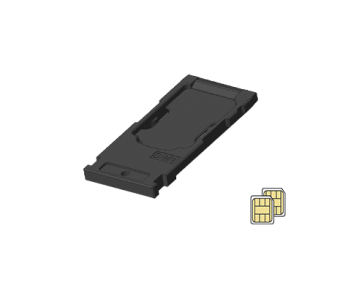

配件
功能介紹
*
Features:
  • Tray Push-Push type Dual Nano-SIM connector
    (Tray is separated)
  • Tray detection and reverse insertion prevention for correct mating
  • Extended 6mm ejection length for easy card removal
  • 2mm tray edge for adaptable panel/casing design
  • Tray lock function for robust against shock
  • Tested to 5,000 mating cycles
  • Operating temperature is from -40C to +85°C
  • Passed EN60721-3-5 Class 5M3 random vibration & Level II shock tests

*
Application:
  • Telematics and V2X
  • IIoT
  • Smart meter
  • Gateway and Router
  • M2M
  • Mobile devices
  • Security and surveillance
規格介紹
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating10V DC
Contact Resistance100mΩ Max.
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability5,000 cycles
Contact Normal Force0.5N Max. per pin
Tray Lock Force3N Min.
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range- 40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C
下載
類別 標題 文件類型標題大小文件類型下載
圖面115U-B100239 KBPDF: 工程用圖面Download
3D115U-B100742 KBRAR: 3D檔Download
圖面115U-T00378 KBPDF: 工程用圖面Download
規格書115U-B100313 KBPDF: 工程用圖面Download
圖面115U-T00582 KBPDF: 工程用圖面Download
