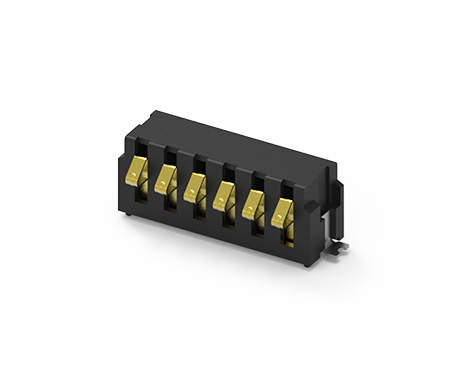

Battery Connector, R/A, SMT, Pitch 2.5, H=6.5, XX Pin
304C-6525XX
Battery Connector, R/A, SMT, Pitch 2.5, H=6.5, XX Pin
Our Battery connector was original design for battery charging, it also suitable for other applications required to provide stable and continuous power transmission to the device. It is good chose for compact, robust, high current density, board to board mating connectivities.
Our Battery connector was original design for battery charging, it also suitable for other applications required to provide stable and continuous power transmission to the device. It is good chose for compact, robust, high current density, board to board mating connectivities.
Share:
規格介紹
| Current Rating | 2.0A |
|---|---|
| Voltage Rating | 12V |
| Contact Resistance | 40mΩ Max. |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 Cycle |
|---|---|
| Normal Force | 200g Max. at Working Location |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | - 40°C~+105°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 304C-6525XX | 66 KB | PDF: 工程用圖面 |  |
| 3D | 304C-6525XX | 131 KB | RAR: 3D檔 | |
