M5 A Code, Male Pins, Straight, Front Fastened
220A-XXMSF

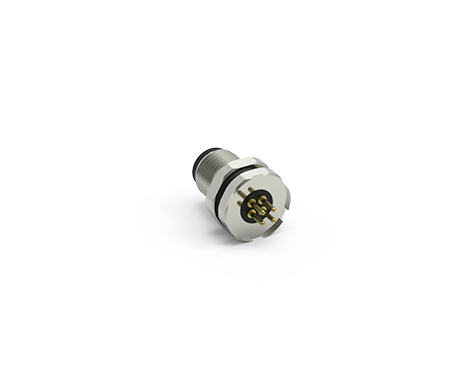

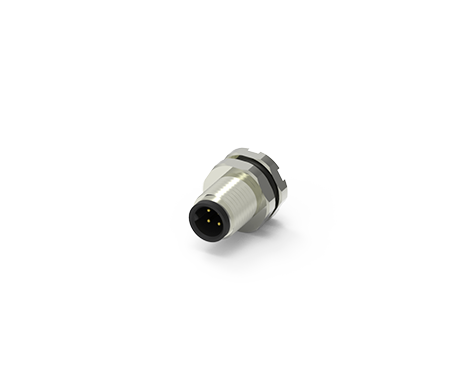

M5 A Code Receptacle, Male Pins, Straight PCB Type, Front Fastened

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Share:
功能介紹
Panel Mount Ordering Instructions
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
220A-02MSF             Pin Assignment 2pin2Pin
220A-03MSFPin Assignment 3pin3Pin
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
220A-04MSFPin Assignment 4pin4in

規格介紹
ELECTRICAL
Current Rating1A
Voltage Rating60V
ENVIRONMENTAL
Operating temperature range-20°C~+85°C
Waterproof LevelIP67
下載
類別 標題 文件類型標題大小文件類型下載
圖面220A-04MSF120 KBPDF: 工程用圖面Download
3D220A-04MSF143 KBRAR: 3D檔Download
圖面220A-02MSF124 KBPDF: 工程用圖面Download
圖面220A-03MSF108 KBPDF: 工程用圖面Download
