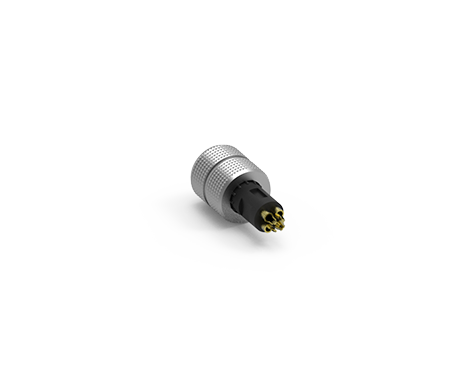

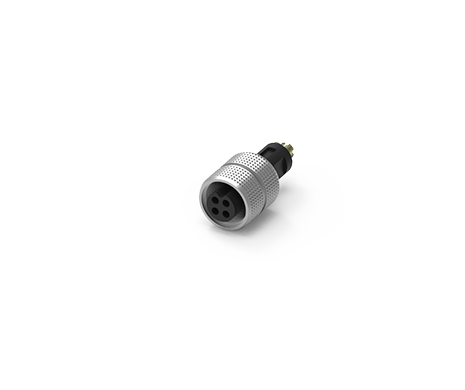

M5 A Code, Plug, Female, Overmold with cable
220A-XXFO0
M5 A Code, Plug for Cable, Female Pins, Overmold with cable
M5 circular connector is the most compact type in the M series. The straight and right angle types are available for your design needs. With an IP protection rating of IP67 and screw cap of durable design, this M5 circular connector type becomes the perfect solution for medical devices, automotive sensors, industrial controllers as well as embedded systems exposed to extreme working environments.
M5 circular connector is the most compact type in the M series. The straight and right angle types are available for your design needs. With an IP protection rating of IP67 and screw cap of durable design, this M5 circular connector type becomes the perfect solution for medical devices, automotive sensors, industrial controllers as well as embedded systems exposed to extreme working environments.
Share:
功能介紹
APPLICATION:
- Medical Devices
- Automotive Sensors
- Industrial Controllers
Part Number | Pin Assignment | Pin Count |
---|---|---|
220A-02FO0 | 2Pin | |
220A-04FO0 | 4Pin |
規格介紹
Current Rating | 1A |
---|---|
Voltage Rating | 60V |
Operating temperature range | -20°C~+85°C |
---|---|
Waterproof Level | IP67 |
