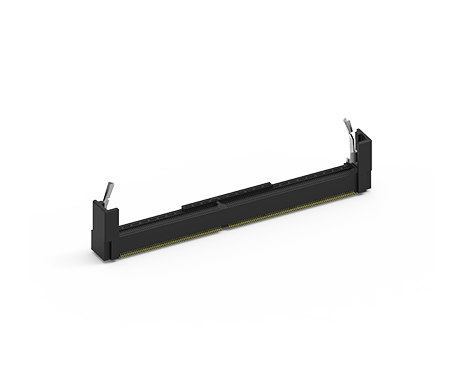

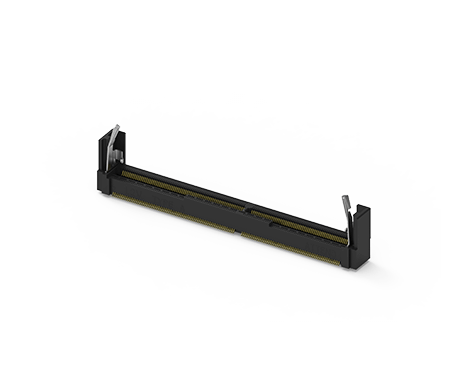

DDR4 SODIMM Socket,Vertical Standard Type
124B-150A02
SO DIMM DDR4 Socket Vertical Standard Type, 260 Pin
Since SO-DIMM roughly half the size of regular DIMMs, it often used in systems with limited space, such as laptops, notebooks, small-footprint personal computers, high-end upgradable office printers, and networking hardware...etc. ATTEND offers various selections from DDR2 to DDR4 with different types, including vertical and standard type.
Since SO-DIMM roughly half the size of regular DIMMs, it often used in systems with limited space, such as laptops, notebooks, small-footprint personal computers, high-end upgradable office printers, and networking hardware...etc. ATTEND offers various selections from DDR2 to DDR4 with different types, including vertical and standard type.
Share:
規格介紹
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 25V AC/DC |
| Contact Resistance | 55mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 300VAC |
| Durability | 25 Cycle |
|---|---|
| Insertion Force | 30N max. |
| Extraction Force | 30N max. |
| Operating temperature range | -55℃~+85℃ |
|---|---|
| Storage temperature range | -55℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 124B-150A02 | 437 KB | PDF: 工程用圖面 |  |
| 3D | 124B-150A02 | 5122 KB | RAR: 3D檔 | |
| 規格書 | 124B-150AX2 | 443 KB | PDF:規格書 | |
