Executive Summary: Connectivity as the Backbone of Future Mobility
FAKRA Connectors: A Technical Foundation
- Standardization: Compliant with ISO 20860-1/2 and SAE/USCAR-2 standards .
- Frequency Performance: Supports frequencies up to 6 GHz, suitable for applications like 5G and HD video streaming .
- Durability: Operates reliably in temperatures ranging from -40°C to +105°C and withstands harsh automotive environments .
- Color-Coded Keying: Features 14 color codes to prevent mismating and ensure correct connections .
Driving Smart Mobility: Five Core Applications
- V2X Connectivity: Facilitates communication between vehicles and infrastructure using Bluetooth, Wi-Fi, LTE, and 5G NR .
- HD Video Streaming: Enables real-time, interference-free feeds from multiple cameras .
- Precision Navigation: Ensures reliable GPS and GNSS signal reception .
- Advanced Infotainment: Delivers high-quality, EMI-protected entertainment .
- Sensor Data Integration: Supports real-time data fusion from radar, LiDAR, and cameras.
Autonomous Driving Revolution: Enhanced Perception
FAKRA connectors enable vehicles to process vast amounts of sensor data in real-time, enhancing autonomous driving capabilities:
- 360-Degree Sensing: Supports simultaneous operation of multiple sensors .
- Real-Time Processing: Ensures critical data is transmitted within milliseconds for immediate decision-making .
Strategic Advantages of Standardization
- Cost Efficiency: Standardized designs streamline deployment and reduce maintenance costs.
- Modular Scalability: Adapts to basic and advanced vehicle platforms.
- Future-Ready Design: Supports higher frequencies for evolving standards.
- Environmental Resilience: Performs reliably in extreme conditions.
- EMC/EMI Compliance: Ensures signal integrity in complex electronic environments.
Real-World Impact: Performance Metrics
| Application Domain | FAKRA Role | Technical Advantage | Quantified Impact |
|---|---|---|---|
| GNSS Navigation | Satellite Signal Reception | High RF sensitivity | Enhanced positioning accuracy |
| 360° Vision Systems | Multi-Camera Integration | High-bandwidth, EMI-resistant | Latency-free HD video streaming |
| Autonomous Radar | Signal Processing | Low-latency transmission | Millisecond-level response times |
| 5G Connectivity | Antenna Interface | 6GHz+ frequency support | Ultra-fast communication |
| ADAS Systems | Data Fusion | Multi-channel data transfer | Improved accident prevention |
Application Case: FAKRA in Diverse Ecosystems
FAKRA connectors excel across multiple industries, addressing unique challenges in autonomous mobile robots (AMRs), commercial fleets and logistics, and agricultural automation. The following visualizations highlight FAKRA’s superior performance compared to traditional RF connectors.
Case 1: Autonomous Mobile Robots (AMRs)
AMRs require high-speed data transmission and robust durability in dynamic environments like warehouses. FAKRA connectors enable seamless sensor integration and reliable operation under varying conditions.

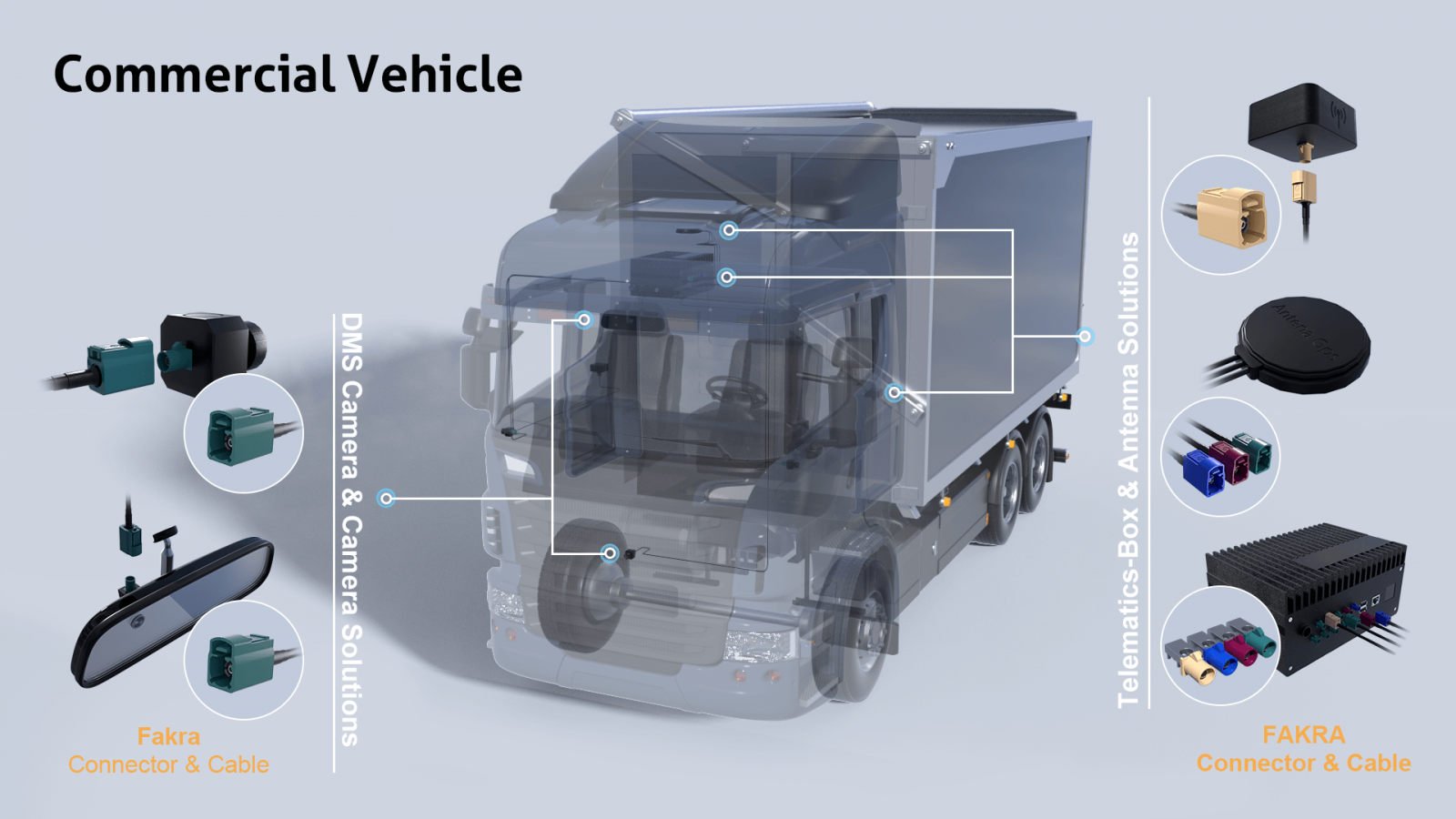

Case 2: Commercial Fleets & Logistics
In commercial fleets and logistics, FAKRA connectors support V2X communication and sensor data fusion, enhancing fleet efficiency and safety in demanding operational conditions.

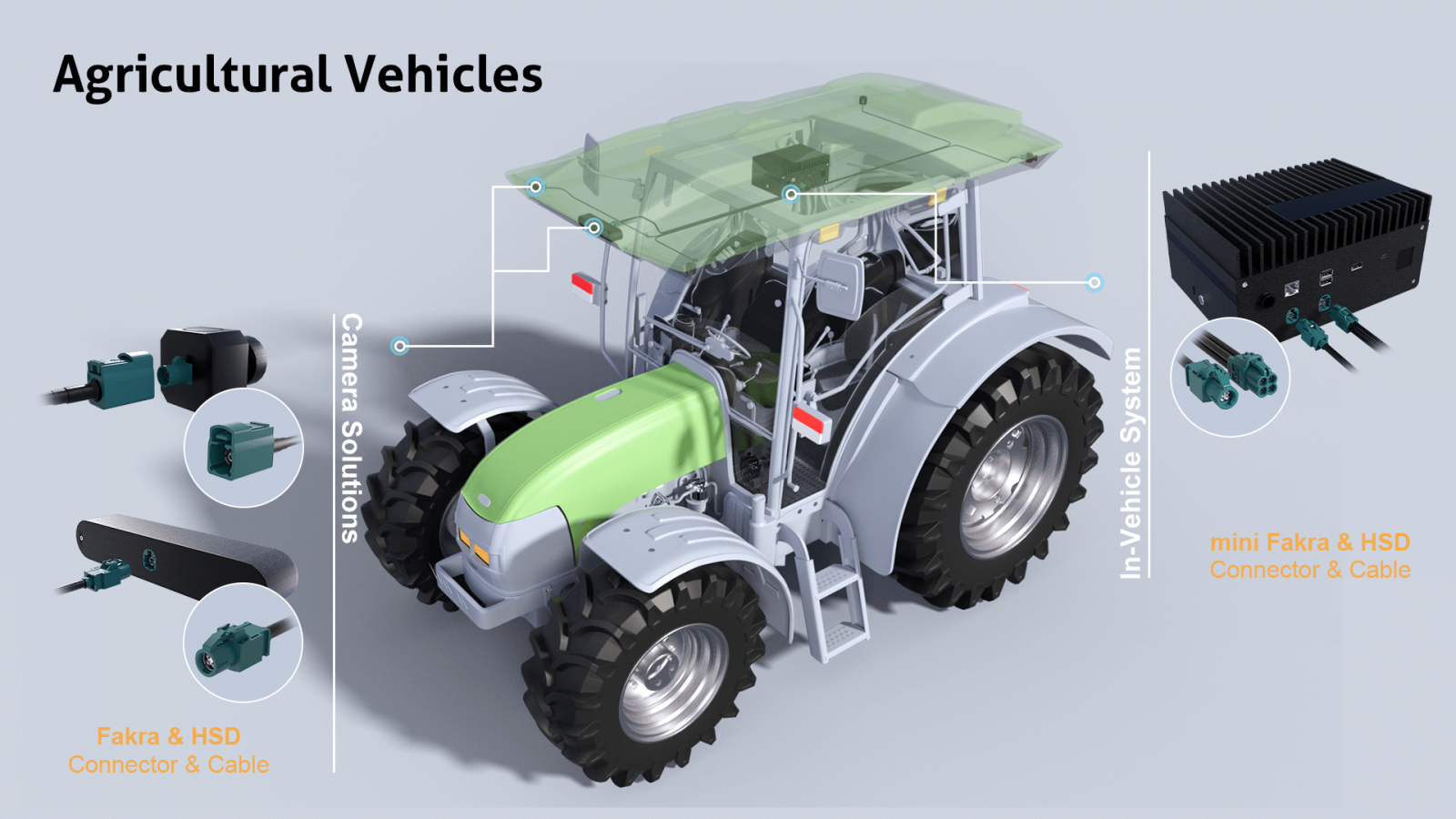

Case 3: Agricultural Automation & Precision Farming
FAKRA connectors enable precision navigation and sensor integration in autonomous farming equipment, ensuring reliability in harsh agricultural environments.
Detailed Technical Specifications
| Item | Specification |
|---|---|
| Compliance Standards | ISO 20860-1/2, SAE/USCAR-2, USCAR-17 |
| Locking Structure | IP67 + robust mechanical design |
| Mating Cycles | >100 cycles |
| Operating Temperature | –40°C to +105°C |
| Conductor Specification | Z-code: AWG24 / 0.25 mm² |
| Cable OD | 4.0–5.0 mm |
| Termination | Soldering + injection molding |
| Vibration Resistance | Complies with IEC 60512-6-4 multi-axis vibration test standards |
ATTEND Technology: Leading the Connectivity Revolution
FAKRA & Mini-FAKRA Highlights
- Frequency Range: FAKRA (DC–6GHz), Mini-FAKRA (up to 15GHz).
- Compact Design: Mini-FAKRA reduces size by up to 80%.
- Standards Compliance: Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17.
- Environmental Durability: Operates from -40°C to +105°C.
Innovative Design Features
- 13-Color Coding: Reduces installation errors with clear visual identification.
- Flexible Configurations: Supports single, dual, and quad-port setups.
Expert Insight
"Our FAKRA and Mini-FAKRA connectors are rigorously tested for signal stability and durability across diverse applications. FAKRA ensures robust reliability, while Mini-FAKRA offers compact solutions for space-constrained systems."
— Leon Hung, Product Manager at ATTEND
Expanded Application Ecosystem
ATTEND’s FAKRA solutions empower:
- Automotive: ADAS, infotainment, V2X, GPS, and telematics.
- Industrial Automation: AGVs, AMRs, and wireless infrastructure.
- Smart Agriculture: Autonomous farming equipment and sensor networks.
Competitive Edge: FAKRA vs. Traditional RF Connectors
| Feature | Traditional RF Connectors | ATTEND FAKRA Solutions | Advantage |
|---|---|---|---|
| Development Time | Lengthy, complex | Streamlined | Faster time-to-market |
| Integration Complexity | High | Low | Simplified deployment |
| Maintenance Costs | High | Low | Cost savings |
| Future Scalability | Limited | High | Future-proof design |
| Standards Compliance | Partial | Full | Regulatory confidence |
Market Outlook: A Connected Future
The FAKRA connector market is projected to grow at a ~25% CAGR (2025–2030), driven by advancements in autonomous vehicle technology, expansion of smart infrastructure, and emerging applications in logistics automation and UAVs .
Strategic Selection Criteria
For System Integrators:
- Standardized, reliable connections.
- Robust supply chain and technical support.
- Seamless integration with existing systems.
For End Users:
- Proven automotive-grade reliability.
- Easy upgrades and simplified maintenance.
- Enhanced vehicle performance and safety.
Conclusion: Partner with ATTEND for Connectivity Leadership
FAKRA connectors may operate behind the scenes, but they are pivotal to the smart mobility revolution. ATTEND Technology’s cutting-edge solutions deliver unmatched performance, reliability, and scalability to drive industry leadership.
Why Choose ATTEND?
- Technical Excellence: Superior frequency and compact designs.
- Certified Quality: Full compliance with global standards.
- Versatile Applications: Spanning automotive, industrial, and agricultural sectors.
- Custom Solutions: Tailored to specific needs.
- Future-Ready: Prepared for 6G and next-generation technologies.
