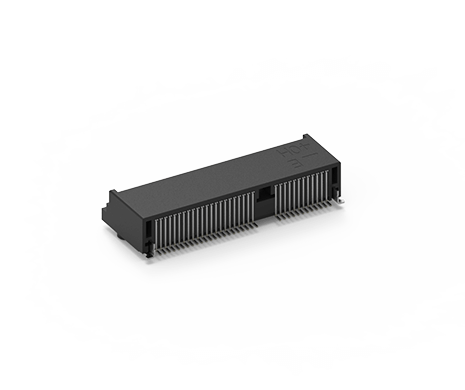

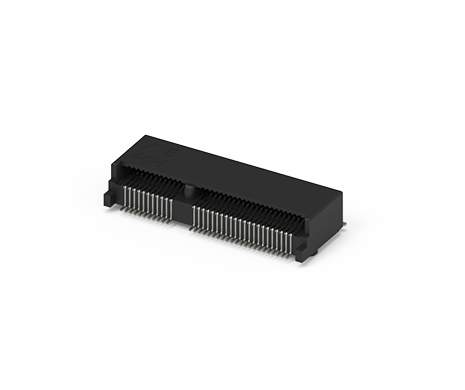

M.2 Connector E Key, H=4.0mm
123A-40E00
M.2 Connector, E Key, H=4.0mm, GF
ATTEND's M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
ATTEND's M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
- Height range: 2.1 mm to 8.5 mm
- A, B, E, and M keying options for module cards

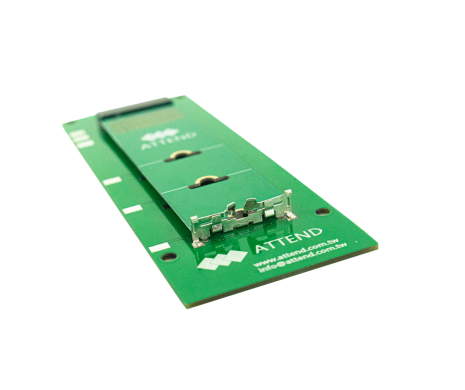

- One-action latch for time and cost savings
- PCI-SIG PCIe M.2 specification compliant
- 0.5 mm pitch featuring sixty-seven contact points
APPLICATION:
- Data storage
- Servers
- Industrial PCs
- IoT
SPECIFICATION
Current Rating | 0.5A per pin |
---|---|
Voltage Rating | 50VAC |
Contact Resistance | 50mΩ Max |
Insulation Resistance | 500MΩ Min |
Dielectric Withstanding Voltage | 300VAC |
Durability | 60 Cycle |
---|---|
Insertion Force | 20N max. |
Extraction Force | 25N max. |
Operating temperature range | -40℃~+85℃ |
---|---|
Storage temperature range | -40℃~+85℃ |
Recommended IR Reflow(Wave Soldering) Temperature | 260℃ |
---|
