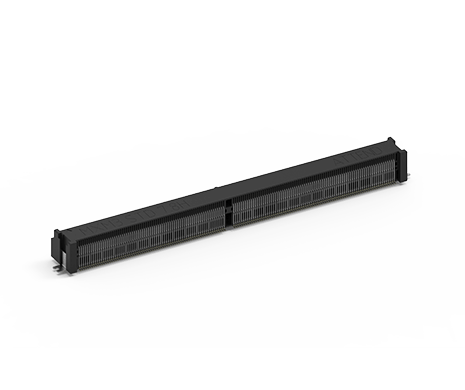

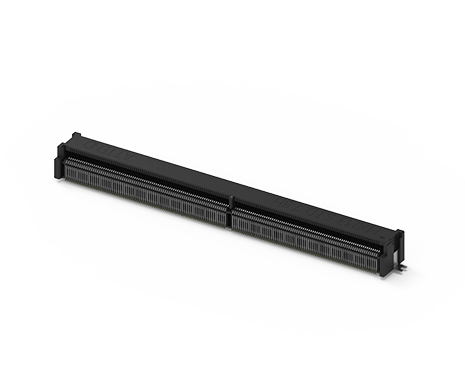

MXM 3.0 Connector, 314 pin
125B-78C00
MXM 3.0 Connector, 314 pin, H=7.8mm, Pith=0.5mm, 5u''
ATTEND's 125B-78C00 is a robust MXM connector that offers a high-density PCIe® solution specifically designed to support advanced server system architectures. This connector serves as an interface between the carrier board or embedded GPU modules, transmitting all I/O signals. With a 0.50 mm pitch and 314 contacts, MXM3 connectors save PCB space, making them an ideal choice for compact designs. The MXM3 connector is a small form factor, low-power, high-performance connector supporting 16-lane PCI Express® signal applications. MXM interfaces are widely used in various mobile devices, including industrial controllers, in-vehicle computers, gaming, edge computing, edge AI accelerators, blade, and standard rack-mount servers.
ATTEND's 125B-78C00 is a robust MXM connector that offers a high-density PCIe® solution specifically designed to support advanced server system architectures. This connector serves as an interface between the carrier board or embedded GPU modules, transmitting all I/O signals. With a 0.50 mm pitch and 314 contacts, MXM3 connectors save PCB space, making them an ideal choice for compact designs. The MXM3 connector is a small form factor, low-power, high-performance connector supporting 16-lane PCI Express® signal applications. MXM interfaces are widely used in various mobile devices, including industrial controllers, in-vehicle computers, gaming, edge computing, edge AI accelerators, blade, and standard rack-mount servers.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
AVAILABLE ACCESSORIES
MAIN FEATURES
- Compatible with the MXM 3.0/2.0 standard
- Mating area: 0.5 mm pitch, space-saving
- 7.8 mm height, module board mating height 5.0 mm from main board
- Carrier connector 314 pins for SMARC specification
- Carrier connector 230 pins for Qseven specification
- Ready for M2.5 nut and screw installation
- Excellent signal integrity such as USB, SATA , PCIe , LVDS , eDP , MIPI , and Ethernet
-02.jpg)
APPLICATION:
- Edge computing
- Edge AI accelerators
- Telematics and V2X
- IIoT
- Gaming
- M2M
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 250MΩ |
| Dielectric Withstanding Voltage | 250VAC |
| Durability | 30 Cycle |
|---|---|
| Insertion Force | 13N max. |
| Extraction Force | 16N max. |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Recommended IR Reflow(Wave Soldering) Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 125B-78C00 | 506 KB | PDF: Drawing |  |
| 3D | 125B-78C00[Fixation by screw/nut] | 3295 KB | RAR: 3D File | |
| Datasheet | 125 Series | 461 KB | PDF:Spec | |
| Drawing | 125-NUT-78 | 94 KB | PDF: Drawing | |
| Drawing | 125-SCREW | 83 KB | PDF: Drawing | |
