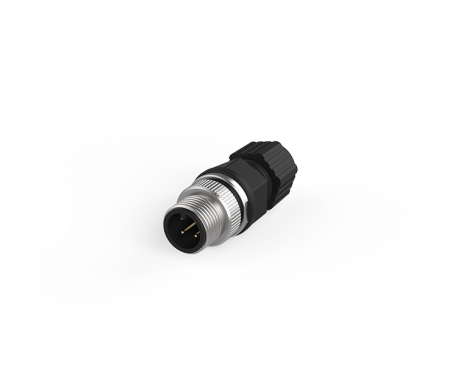

M12 A-Code, Male For Field Installable, Plastic
216A-XXMF1
M12 A-Code Plug for Cable, Male For Field Installable, Plastic, G/F
ATTEND’s M-series Field-Installable Plastic Circular Connector is a solder-type connector. It boasts a patented design featuring a removable insert/shell, which simplifies field rework.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND’s M-series Field-Installable Plastic Circular Connector is a solder-type connector. It boasts a patented design featuring a removable insert/shell, which simplifies field rework.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-04MF1 | 216A-04FF1 216A-04FAR 216A-04FAF 216A-04FSF 216A-04FRF 216A-04FO0 216A-04FF0 |  | 4Pin |
| 216A-05MF1 | 216A-05FF1 216A-05FAR 216A-05FAF 216A-05FSF 216A-05FRF 216A-05FO0 216A-05FF0 |  | 5Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-08MF1 | 216A-08FF1 216A-08FAR 216A-08FAF 216A-08FSF 216A-08FRF 216A-08FO0 216A-08FF0 |  | 8Pin |
| 216A-12MF1 | 216A-12FF1 216A-12FAF 216A-12FSF 216A-12FO0 |  | 12Pin |
SPECIFICATION
| 4 Pin Current Rating | 4A |
|---|---|
| 4 Pin Voltage Rating | 250V |
| 5 Pin Current Rating | 4A |
|---|---|
| 5 Pin Voltage Rating | 60V |
| 8 Pin Current Rating | 2A |
|---|---|
| 8 Pin Voltage Rating | 30V |
| 12 Pin Current Rating | 1.5A |
|---|---|
| 12 Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Datasheet | Pairing Diagram M Series waterproof connector | 95 KB |  | |
| Datasheet | 216Series Spec | 396 KB | PDF:Spec | |
| Drawing | 216A-04MF1 | 261 KB | PDF: Drawing | |
| 3D | 216A-04MF1 | 578 KB | RAR: 3D File | |
| Drawing | 216A-05MF1 | 262 KB | PDF: Drawing | |
| 3D | 216A-05MF1 | 415 KB | RAR: 3D File | |
| Drawing | 216A-08MF1 | 264 KB | PDF: Drawing | |
| 3D | 216A-08MF1 | 620 KB | RAR: 3D File | |
| Drawing | 216A-12MF1 | 257 KB | PDF: Drawing | |
| 3D | 216A-12MF1 | 443 KB | RAR: 3D File | |
