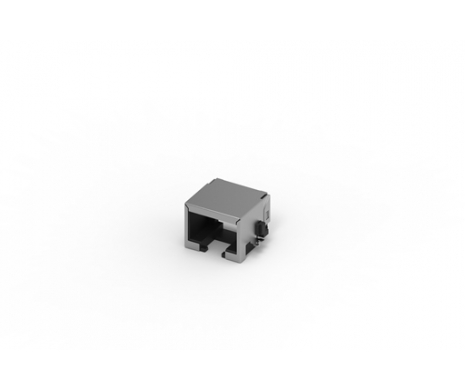

RJ45 Jack Shielded SMD Type
210A-11A0B-RA17
RJ45 Jack Shielded SMD Type
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 1.5 AMP |
|---|---|
| Voltage Rating | 150 VAC |
| Contact Resistance | 40 Milliohms MAX. |
| Insulation Resistance | 500 Megohms Min. @500 VDC |
| Dielectric Withstanding Voltage | 750 VAC 60Hz, 1Min. |
| Shield Material | Brass, t= 0.20mm. |
|---|---|
| Housing & Insert Material | LCP. UL94V-0, Black |
| Contact Material | Phosphor Bronze t=0.30mm |
| Operating Life | 500 Cycles Min. |
| PCB Retention Post-solder | 10 LBS MIN. |
| Storage | -40℃ to +85℃ |
|---|---|
| Operation | -40℃ to +85℃ |
| IR Reflow Soldering Temperature | 255℃~265℃ (5~10 Sec.) |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| 3D | 210A-11A0B-RA17 | 152 KB | RAR: 3D File |  |
| Drawing | 210A-11A0B-RA17 | 157 KB | PDF:Spec | |
