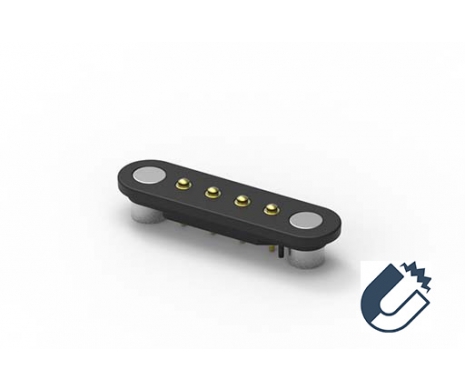

Pogo Pin, Magnet, 4P, H4.6, P3.0, DIP, 5u"
303C-321018-30-04
Pogo Pin, Magnet Type, 4Pin H4.6, Pitch 3.0, DIP, 5u'', Black
ATTEND’s Magnetic Pogo Pin Connector combines magnetic alignment with durable Pogo Pin technology, offering seamless power and data transmission in demanding environments. It’s designed to ensure fast, reliable, and efficient connections, meeting the needs of advanced industrial and consumer applications.
Highlights:
●Quick Connection: Magnetic alignment for precise attachment.
●Damage Prevention: Tear-away feature protects devices.
●Stable Performance: Vibration-proof for reliable operation.
ATTEND delivers innovative solutions for superior connectivity and performance.
ATTEND’s Magnetic Pogo Pin Connector combines magnetic alignment with durable Pogo Pin technology, offering seamless power and data transmission in demanding environments. It’s designed to ensure fast, reliable, and efficient connections, meeting the needs of advanced industrial and consumer applications.
Highlights:
●Quick Connection: Magnetic alignment for precise attachment.
●Damage Prevention: Tear-away feature protects devices.
●Stable Performance: Vibration-proof for reliable operation.
ATTEND delivers innovative solutions for superior connectivity and performance.
Share:
MAIN FEATURES
ATTEND Magnetic Connector delivers stable and reliable power and data transmission with a magnetic alignment design to ensure efficient connections.
● Fast and Easy Connection: Magnetic design enables quick and precise device attachment.
● High Durability: Supports numerous mating cycles, ensuring long-term stable performance.
● Breakaway Function: Provides safe disconnection during accidental detachment to prevent device damage.
● Integrated Design: Includes cable design and assembly for seamless integration.
This connector is ideal for outdoor devices, industrial equipment, and other high-demand applications.
Applications:
- Smart Wearable Products: Ideal for fitness trackers, smartwatches, and other wearable technologies.
- Office Devices: Perfect for ePaper meeting room booking displays and other office automation solutions.
- Medical Industry: Reliable for devices such as blood pressure monitors, heart rate monitors, and other medical equipment.
SPECIFICATION
| Current Rating | 1A per pin |
|---|---|
| Voltage Rating | 12 VDC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Pogo pin contact force | 40g±20g at 0.4mm work stoke, full stroke 0.6mm |
|---|---|
| Durability | 20,000 Cycles |
| Operating temperature range | -30°C~+60°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 303C-321018-30-04 | 75 KB | PDF: Drawing |  |
| Datasheet | 303C-321018-30-04 Spec | 281 KB | PDF:Spec | |
| 3D | 303C-321018-30-04 | 62 KB | RAR: 3D File | |
