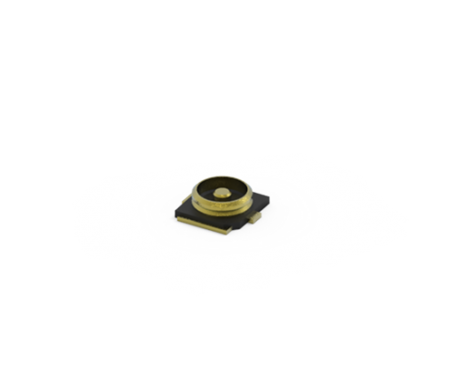

Micro Coaxial RF Connector, 2x2x0.6mm, 4 Pad
321C-220601
Micro Coaxial RF Connector, 2x2x0.6mm, 4 Pad

A Micro coaxial RF connector (radio frequency connector) is designed to work at radio frequency in the multi-megahertz range. RF connector generally used with coaxial cable and are designed to maintain the shielding that the coaxial design offers. ATTEND provides durable working function RF connector solution to ensure your application working regularly.
MAIN FEATURES
*
FEATURES:
● Small mounting area/ Light weight
● Meet slim equipment requirements
● Supports high frequency
*
APPLICATION:
Wi-Fi, 4G LTE, 5G and sub-6 GHz, Bluetooth, GPS, WiGig, M2M, IoT, SigFox, WiSUN, NB-IoT and LoRa
SPECIFICATION
ELECTRICAL
Current Rating1A
Voltage Rating60VAC
Contact ResistanceInner Contact│Initially: 20mΩ
Contact ResistanceGround Contact│Initially: 10mΩ
Insulation Resistance500MΩ
Dielectric Withstanding Voltage200VAC for 1 minute
VSWR100MHz to 3GHz│1.3Max
VSWR3GHz to 6GHz│1.4Max
Nominal Characteristic Impedance50Ω
Applicable Frequency100MHz to 12GHz
MECHANICAL
Durability30 Cycle
ENVIRONMENTAL
Operating temperature range-40°C to +85°C
Storage temperature range-40°C to +85°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
3D321C-22060112 KBRAR: 3D FileDownload
Drawing321C-220601179 KBPDF: DrawingDownload
