Combo USB, Dual USB 3.0 + RJ45 Magnetic, R/A DIP Type
209G-CCN0

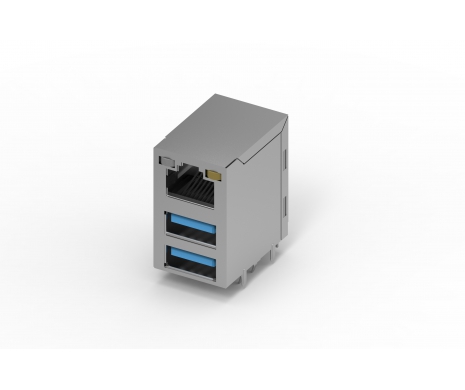

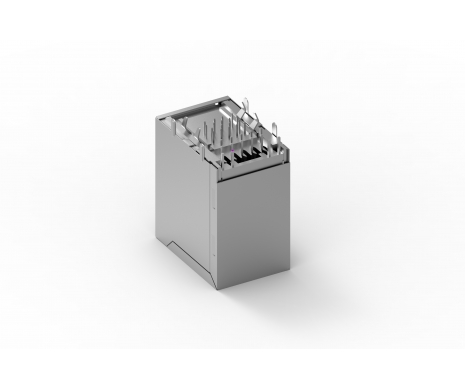

Combo USB, Dual USB 3.0 + RJ45 Magnetic, Right Angle, DIP

ATTEND 209G-CCN0 combo USB is combined with two USB 3.0 port and RJ45 Magnetic connectors together that design for effectively save the PCB layout space and decrease the product size.
SPECIFICATION
ELECTRICAL
Current Rating: USB3.01.8A per pin
Current Rating: RJ451A per pin
Voltage Rating: USB3.030VAC
Voltage Rating: RJ45150VAC
Contact Resistance50MΩ
Insulation Resistance: USB3.0100MΩ
Insulation Resistance: RJ45500MΩ
Dielectric Withstanding Voltage: USB3.0100VAC
Dielectric Withstanding Voltage: RJ451000VAC
MECHANICAL
Durability: USB 3.01,500 Cycle
Durability:RJ45750 Cycle
Durability25 Cycle
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
Recommended PCB Thickness1.6mm
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing209G-CCN0228 KBPDF: DrawingDownload
3D209G-CCN070 KBRAR: 3D FileDownload
