Nano SIM Socket, Tray Eject Type
115S-ACA0

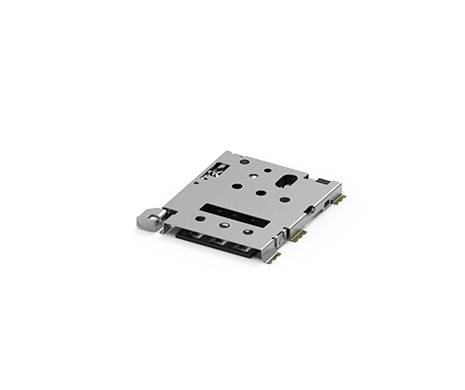

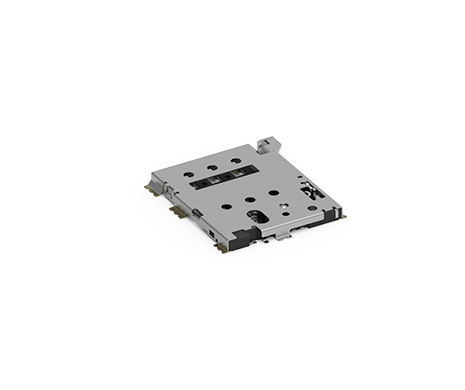

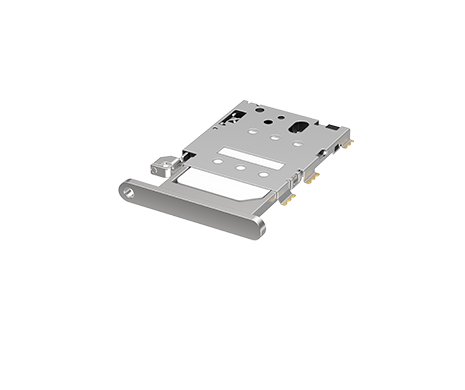

Nano SIM Card Socket, Eject Type, Top Mount, H=1.35mm, 5u''

ATTEND’s Nano SIM Card Socket is designed for efficient SIM card management in compact devices. The top mount design allows easy access and secure ejection, ideal for mobile devices, IoT applications, and industrial systems. With a height of 1.35mm and 5u'' gold plating, this socket ensures durability and corrosion resistance. ATTEND’s focus on innovation guarantees reliable performance in demanding environments, making it the perfect solution for space-constrained applications.
Share:

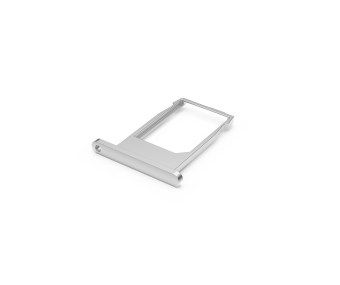

AVAILABLE ACCESSORIES
MAIN FEATURES
*
Conclusion:

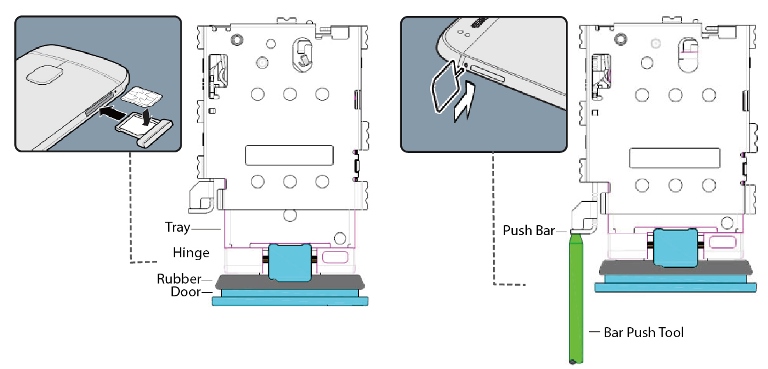

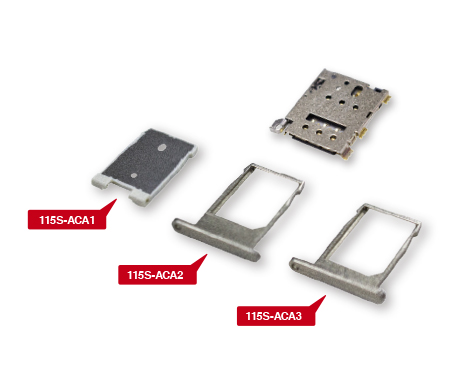

Featuring convenient and quick card insertion/ejection with a rugged mini-size bar push linkage mechanism. The customized hinge, rubber, and door (additional accessories) provide a waterproof function (115S-ACA1) or offer different tray lengths to fit your device design.
  • Mini-size rugged bar push linkage mechanism
  • No need to open the device housing
  • Selectable tray options

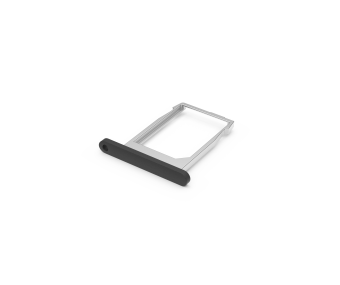

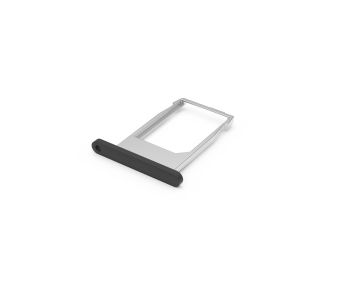

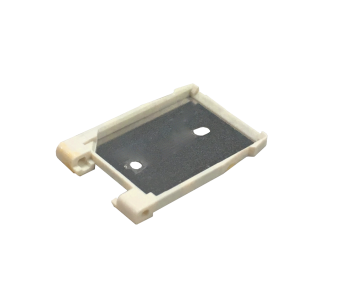

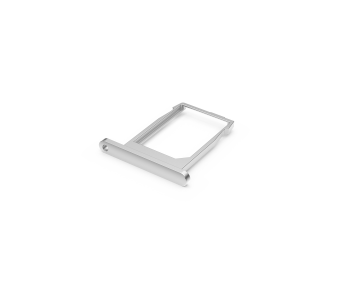

The Tray Eject series also provides two models: the 115S-ACA0, which offers a single Nano SIM card connector, and the 115S-BS00, which features dual Nano SIM card connectors. The trays in this series are made from metal, resulting in a low profile compared to their plastic counterparts, thus reducing the overall height of the card connectors and saving space. Be sure to complete purchases by also acquiring the 115S-ACA2 (to be used with the 115S-ACA0) and the 115S-BT02 (to be used with the 115S-BS00) trays.
*
INTRODUCTION:
  • Convenient and quick SIM card insertion and ejection
  • Mini-size bar push linkage mechanism
  • No need to open the device housing
  • Integrates with customized hinge, rubber, and door for waterproofing
APPLICATIONS
*
  • Telematics and V2X
  • IIoT
  • Smart meters
  • Gateways and routers
  • M2M
  • Mobile devices
  • Security and surveillance

SPECIFICATION
ELECTRICAL
Current Rating0.2A max.
Voltage Rating10VAC/DC
Contact Resistance50mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability2,000 Cycle
Tray Insertion Force20N max.
Tray Extraction Force3N min.
Contact Normal Force40gf min. per pin
ENVIRONMENTAL
Operating temperature range-30°C~+85°C
Storage temperature range-40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature260°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115S-ACA0594 KBPDF: DrawingDownload
3D115S-ACA0983 KBRAR: 3D FileDownload
Drawing115S-ACA390 KBPDF: DrawingDownload
3D115S-ACA3850 KBRAR: 3D FileDownload
Drawing115S-ACA292 KBPDF: DrawingDownload
3D115S-ACA2836 KBRAR: 3D FileDownload
Drawing115S-ACA1154 KBPDF: DrawingDownload
3D115S-ACA1274 KBRAR: 3D FileDownload
Datasheet115S-ACA0 Spec518 KBPDF:SpecDownload
Drawing115S-ACA3A81 KBPDF: DrawingDownload
