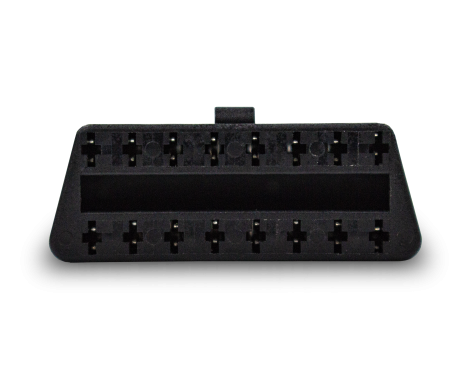

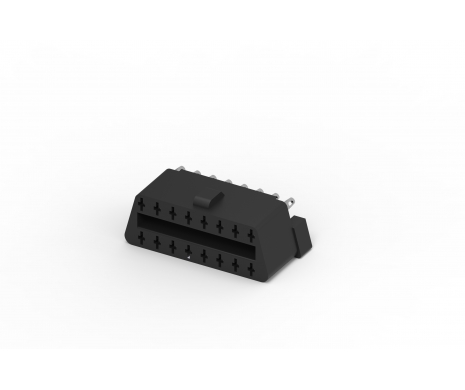

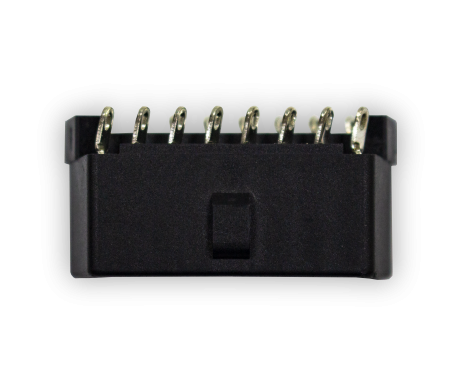

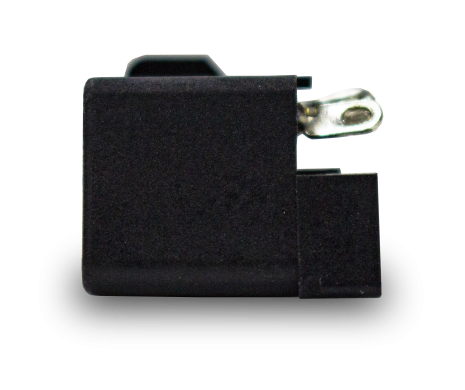

OBDII, Type A/B Female Connector, Solder, Overmold
226B-1201
OBDII, Type A/B Female Connector, 16 Pin, 12V, Solder, Overmold
The OBDII port is designed for vehicle scanners which mechanic could read the DTCs to complete the repair or maintenance. In recent years, there are more advanced devices which are available for regular user or corporation usage for different purposes. ATTEND OBD-II Type-A/B female connector support both type A and type B male connector with solder type which benefits your automotive product design.
The OBDII port is designed for vehicle scanners which mechanic could read the DTCs to complete the repair or maintenance. In recent years, there are more advanced devices which are available for regular user or corporation usage for different purposes. ATTEND OBD-II Type-A/B female connector support both type A and type B male connector with solder type which benefits your automotive product design.
Share:
MAIN FEATURES
- Robust housing design for durability and long service life
- Secure mating interface ensuring reliable connectivity
- Multiple configurations: Type A, Type B, Type A/B Female
- Options for solder, right angle DIP, and overmold assembly
- Compliant with OBDII diagnostic standards
APPLICATIONS
- Onboard diagnostics (OBDII)
- ECU programming & testing
- Diagnostic tools & scanners
- Aftermarket devices & telematics
- Fleet management systems
SPECIFICATION
| Current Rating | 6A MAX |
|---|---|
| Voltage Rating | 30V DC |
| Contact Resistance | 100MΩ Min |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 1000VAC |
| Durability | 200 Cycle |
|---|---|
| Insertion Force | 142N max. |
| Extraction Force | 88N max |
| Operating temperature range | -40℃~+85℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 226B-1201 | 150 KB | PDF: Drawing |  |
| 3D | 226B-1201 | 494 KB | RAR: 3D File | |
