MXM 3.0 Connectors for High-Speed Solutions in High-Performance Edge

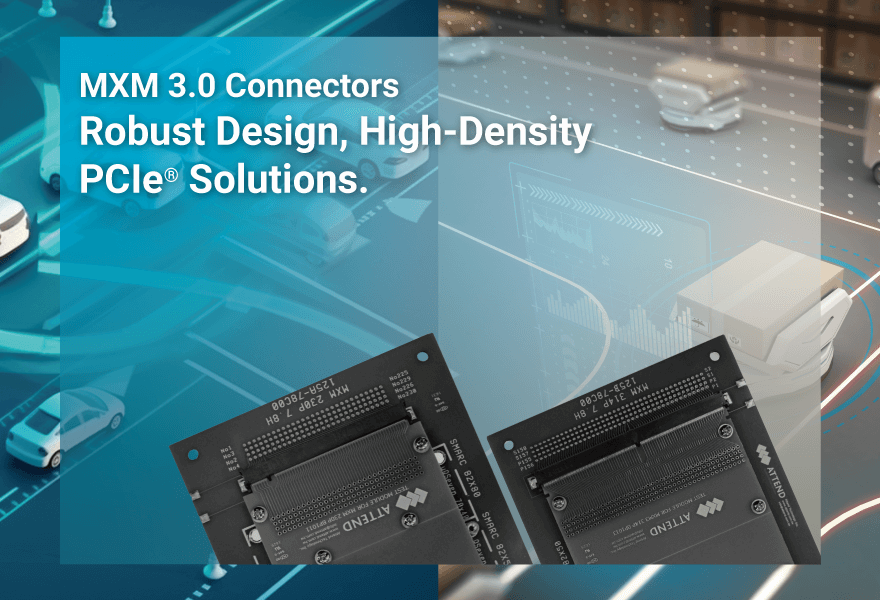

ATTEND, a leading provider of advanced connectivity solutions, announces the launch of its 125B-78C00 and 125A-78C00 MXM Connectors. These high-density PCIe® solutions are engineered to meet the growing demand for high-performance server system architectures. Their sophisticated design offers an efficient interface between the carrier board and SMARC® or Qseven® modules, ensuring seamless transmission of all I/O signals. With a 0.50 mm pitch and 314 contacts, they are vital for compact designs optimizing PCB space, exemplifying the ideal balance between size and performance.
Compliant with the MXM 3.0/2.0 standard, these connectors are versatile enough for various applications. Their 0.5 mm pitch mating area emphasizes space-saving design, while the 7.8 mm height and 5.0 mm module board mating height from the main board ensure compatibility and flexibility. The carrier connector features 314 pins for SMARC and 230 pins for Qseven specifications, guaranteeing signal integrity across USB, SATA, PCIe, LVDS, eDP, MIPI, and Ethernet standards. Designed for M2.5 nut and screw installation, these robust connectors deliver durability and high performance.
Features
- Compatible with the MXM 3.0/2.0 standard
- Mating area: 0.5 mm pitch, space-saving
- 7.8 mm height, module board mating height 5.0 mm from main board
- Carrier connector 314 pins for SMARC specification
- Carrier connector 230 pins for Qseven specification
- Ready for M2.5 nut and screw installation
- Excellent signal integrity such as USB, SATA , PCIe , LVDS , eDP , MIPI , and Ethernet
Applications
- Embedded systems
- Edge computing
- Industrial PCs
- Servers
- Box PCs
- Routers
- Switches
- Notebook PCs
ATTEND's new 125 Series MXM 3.0/2.0 connectors are now available for order. For more product information, technical support, or quotes, please visit ATTEND's website at www.attend.com.tw. You can also email info@attend.com.tw and contact your regional ATTEND sales representative for dedicated and efficient service.
