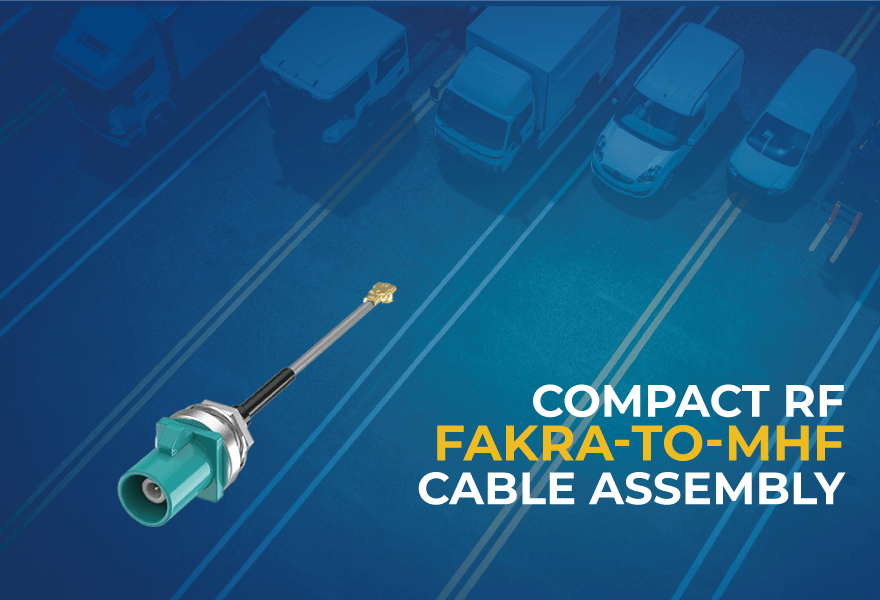

Compact RF Cable Assembly Links Automotive FAKRA Interfaces with PCB-Level MHF Connections for Antenna, Wireless, and Embedded System Integration
ATTEND, a leading provider of advanced connectivity solutions, introduces its FAKRA-to-I-PEX MHF Cable Assembly, designed to bridge automotive FAKRA interfaces with compact PCB-level RF connections. As automotive electronic systems integrate more antennas, RF cabling, communication modules, and compact PCBs, limited installation space can make RF interface integration and mechanical layout more challenging. FAKRA-to-MHF connectivity separates vehicle-side FAKRA interfaces from compact board-level RF connections, improving cable routing and module placement while simplifying overall RF system integration.
Featuring a FAKRA Z Code plug, 250 mm coaxial cable, and compact I-PEX MHF interface, part number FR-1P1P-025Z01W supports 50 Ω RF transmission from DC to 6 GHz. IP67 protection when properly mated, a 1.37 mm cable OD, and an operating temperature range of –40 °C to +90 °C support use across automotive telematics, infotainment, GPS, antenna, V2X, and industrial wireless applications.
“Automotive RF architectures increasingly combine robust vehicle-side interfaces with compact PCBs and wireless modules,” said Leon Hung, Product Manager at ATTEND Technology. “FAKRA-to-MHF connectivity provides a flexible RF path between vehicle-side and board-level interfaces, helping engineers simplify cable routing, module placement, and mechanical integration.”
Key Features
- FAKRA-to-I-PEX MHF interface for compact PCB-level RF integration
- 50 Ω impedance for RF signal transmission
- Frequency range: DC to 6 GHz
- FAKRA Z Code configuration
- IP67 protection when properly mated
- 250 mm coaxial cable with 1.37 mm cable OD
- Flexible cable routing for space-constrained system integration
- Operating temperature: –40 °C to +90 °C
Technical Specifications
- Impedance: 50 Ω
- Frequency range: DC to 6 GHz
- Interface: FAKRA Z Code to I-PEX MHF
- Cable length: 250 mm
- Cable OD: 1.37 mm
- Mating cycles: ≥10
- IP rating: IP67 when properly mated
- Operating temperature: –40 °C to +90 °C
- Compliance: RoHS
Applications
- Automotive telematics and infotainment systems
- Advanced Driver Assistance Systems (ADAS)
- GPS and antenna connections
- V2X communication systems
- Industrial wireless communication networks
- IIoT devices
- Industrial automation
- AGVs / AMRs
- Intelligent transportation systems
- Agricultural machinery
Product Lineup
- FR-1P1P-025Z01W — FAKRA Plug to IPEX Cable IP67, L=250mm, Z
