Mini PCIExpress, H=9.9mm
119A-99A00-R02

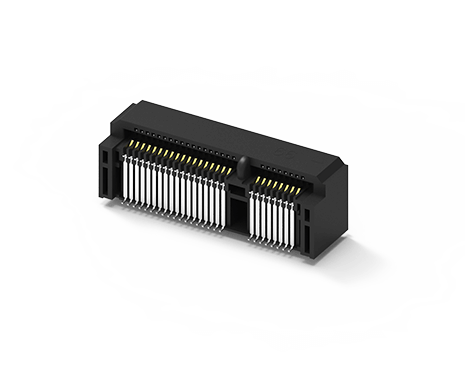

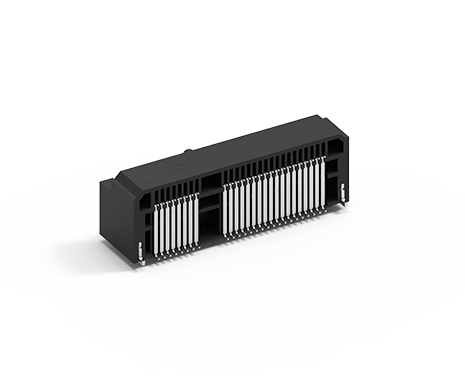

Mini PCIExpress, H=9.9mm, Top Mount, SMT Type
● ATTEND’s Mini PCIe card connectors can support Storage SSD and WiFi, Bluetooth, global navigation satellite systems, near field communication, 4G , LTE, 5G. PCI-SIG standard compliant.
● 0.8mm pitch and a 52-pin configuration with varying heights.
● One or Dual latch for tool free install module quick and easy.
● ATTEND’s Mini PCIe card connectors can support Storage SSD and WiFi, Bluetooth, global navigation satellite systems, near field communication, 4G , LTE, 5G. PCI-SIG standard compliant.
● 0.8mm pitch and a 52-pin configuration with varying heights.
● One or Dual latch for tool free install module quick and easy.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
Multiple mounting options
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
Multiple height options
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
Application
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
SPECIFICATION
Current Rating | 0.5A per pin |
---|---|
Voltage Rating | 50V AC |
Contact Resistance | 30mΩ |
Insulation Resistance | 500MΩ |
Dielectric Withstanding Voltage | 250V AC |
Durability | 50 Cycle |
---|---|
Contact Normal Force | 50gf per pin Min. |
Contact Retention Force | 180gf per pin Min. |
Operating temperature range | -40℃~+90℃ |
---|---|
Storage temperature range | -40℃~+90℃ |
Recommended IR-Refolw Temperature | 260℃ |
---|
