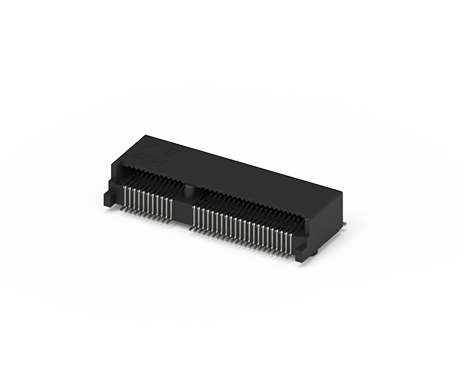

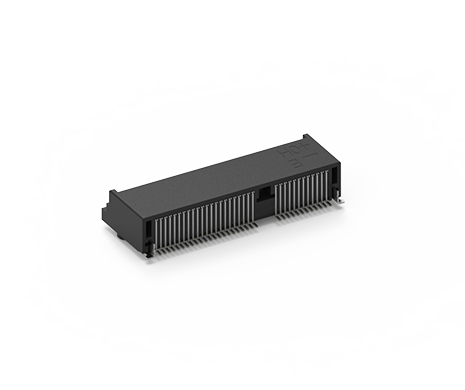

M.2 Connector E Key, H=4.0mm
123A-40E00
M.2 Connector, E Key, H=4.0mm, GF
ATTEND's M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
ATTEND's M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
Share:
功能介紹
- Height range: 2.1 mm to 8.5 mm
- A, B, E, and M keying options for module cards

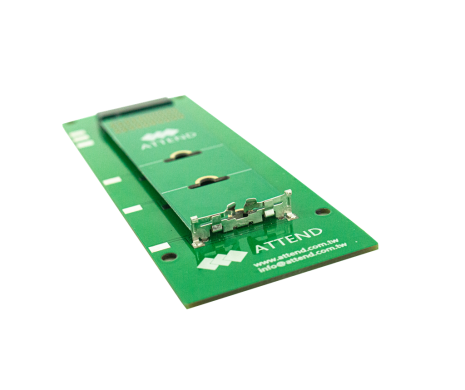

- One-action latch for time and cost savings
- PCI-SIG PCIe M.2 specification compliant
- 0.5 mm pitch featuring sixty-seven contact points
There are two key dimension need to check.
Dim. A：The heights are between min- 2.1mm to max- 8.5mm.
Dim. B：For double-sided modules, this height is also important to keep in mind.
Dim. A：The heights are between min- 2.1mm to max- 8.5mm.
Dim. B：For double-sided modules, this height is also important to keep in mind.
.jpg)
.jpg)
APPLICATION:
- Data storage
- Servers
- Industrial PCs
- IoT
.jpg)
規格介紹
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 50VAC |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 500MΩ Min |
| Dielectric Withstanding Voltage | 300VAC |
| Durability | 60 Cycle |
|---|---|
| Insertion Force | 20N max. |
| Extraction Force | 25N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow(Wave Soldering) Temperature | 260℃ |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 123A-40E00 | 341 KB | PDF: 工程用圖面 |  |
| 3D | 123A-40E00 | 1704 KB | RAR: 3D檔 | |
| 圖面 | 123A-NUT-42 | 80 KB | PDF: 工程用圖面 | |
| 3D | 123A-NUT-42 | 68 KB | RAR: 3D檔 | |
| 圖面 | 123A-SCREW | 78 KB | PDF: 工程用圖面 | |
| 圖面 | 123A-XXL1 | 159 KB | PDF: 工程用圖面 | |
| 規格書 | 123A-XXX00 | 344 KB | PDF:規格書 | |
| 3D | 123A-40L1 | 91 KB | RAR: 3D檔 | |
