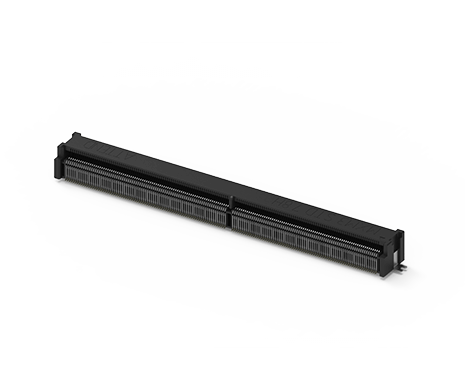

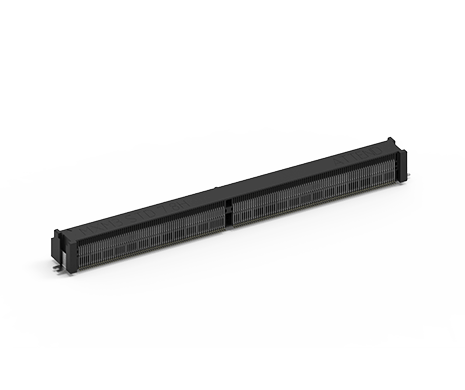

MXM 3.0 Connector, 314 pin
125B-78C00
MXM 3.0 Connector, 314 pin, H=7.8mm, Pith=0.5mm, 5u''
ATTEND's 125B-78C00 is robust MXM connectors that offer a high-density PCIe® solution specifically designed to support advanced server system architectures. This connector serve as an interface between the carrier board and the SMARC® or embedded GPU modules, transmitting all I/O signals. With a 0.50 mm pitch and 314 contacts, MXM3 connectors save PCB space, making them an ideal choice for compact designs. The MXM3 connector is a small form factor, low-power, high-performance connector supporting multiple high-speed peripheral applications. MXM interfaces are widely used in various mobile devices, including industrial controllers, in-vehicle computers, gaming, edge computing, and edge AI accelerators.
ATTEND's 125B-78C00 is robust MXM connectors that offer a high-density PCIe® solution specifically designed to support advanced server system architectures. This connector serve as an interface between the carrier board and the SMARC® or embedded GPU modules, transmitting all I/O signals. With a 0.50 mm pitch and 314 contacts, MXM3 connectors save PCB space, making them an ideal choice for compact designs. The MXM3 connector is a small form factor, low-power, high-performance connector supporting multiple high-speed peripheral applications. MXM interfaces are widely used in various mobile devices, including industrial controllers, in-vehicle computers, gaming, edge computing, and edge AI accelerators.
Share:
配件
功能介紹
FEATURES:
- Compatible with the MXM 3.0 standard
- Mating area: 0.5 mm pitch, space-saving
- 7.8 mm height, module board mating height 5.0 mm from main board
- Carrier connector 314 pins for SMARC specification
- Ready for M2.5 nut and screw installation
- Excellent signal integrity such as USB, SATA , PCIe , LVDS , eDP , MIPI , and Ethernet
APPLICATION:
- Edge computing
- Edge AI accelerators
- Telematics and V2X
- IIoT
- Gaming
- M2M
