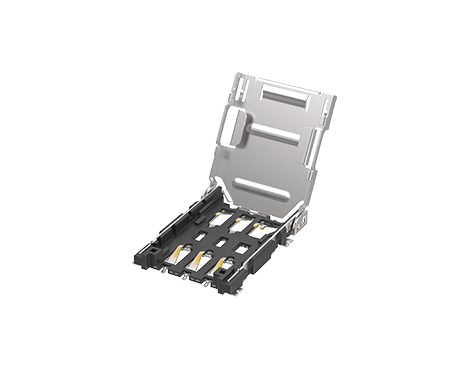

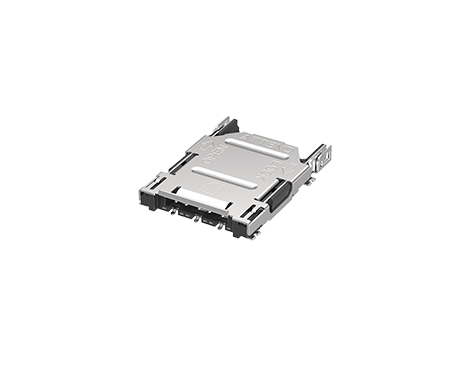

Nano SIM Socket, Hinge Type, 6 Pin w/CD 10u"
115V-AA03
Nano SIM Socket, Hinge Type, 6 Pin w/CD 10u", Reel
ATTEND 的 Nano SIM 卡座專為緊湊設備中的可靠連接而設計。鉸鏈機構便於插入並確保卡片穩固保持，確保在移動設備、物聯網系統和工業設備中的穩定性能。10u'' 鍍金層提供出色的耐用性和防腐蝕性，使該連接器非常適合苛刻環境，是需要空間效率和強大性能應用的理想選擇。
ATTEND 的 Nano SIM 卡座專為緊湊設備中的可靠連接而設計。鉸鏈機構便於插入並確保卡片穩固保持，確保在移動設備、物聯網系統和工業設備中的穩定性能。10u'' 鍍金層提供出色的耐用性和防腐蝕性，使該連接器非常適合苛刻環境，是需要空間效率和強大性能應用的理想選擇。
Share:
功能介紹
Conclusion:
Featuring on high durability and industry-leading stable design, with a wide range operating temperature from -40°C to 105°C.
Featuring on high durability and industry-leading stable design, with a wide range operating temperature from -40°C to 105°C.
- Nano SIM card holder bump design.
- Wide-range operating temperature from -40°C to 105°C.
- Certified with EIA-364-28F-2011 vehicle environmental conditions
Application:
- Intelligent transportation system
- In-vehicle computer
- Infrastructure for commercial IoT
規格介紹
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 10V DC |
| Contact Resistance | Initial 50mΩ, after 100mΩ Max. |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Terminal Durability | 5,000 Cycle |
|---|---|
| Contact Normal Force | 0.3N min. per pin |
| Open & Lock Durability | 100 cycles |
| Open & Lock Force | 1.5N ~ 20N with card |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | -40°C~+105°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115V-AA03 | 871 KB | PDF: 工程用圖面 |  |
| 3D | 115V-AA03 | 570 KB | RAR: 3D檔 | |
