Pogo Pin Water proof Type, 5Pin Pitch 2.5mm
303C-541219-25-05

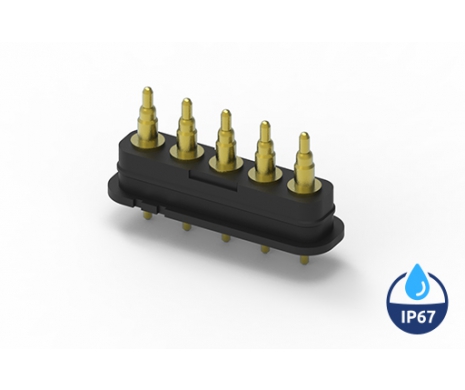

Pogo Pin Water proof Type, 5Pin Pitch 2.5mm T/L 6.6mm W/H 5.4mm DIP w/o Cap

A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.

Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
Share:
功能介紹
*
Conclusion:
  • High Stroke
  • High Durability
  • Long Lifetime
  • Ease of Attaching
  • Stable Current Flow
*
Application:
  • Antenna
  • Board To Board Connection
  • Medical Device
  • Tracking Device
  • Portable Device
*
規格介紹
ELECTRICAL
Current Rating2A per pin
Voltage Rating12V AC/DC
Contact Resistance50mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Pin Force1.08N±0.25N at Stroke 1.0mm
Durability20,000 Cycles
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
Waterproof LevelIPX7
SOLDER ABILITY
Recommended IR Reflow Temperature250°C, 10Sec
下載
類別標題大小文件類型下載
圖面303C-541219-25-05208 KBPDF: 工程用圖面Download
3D303C-541219-25-0531 KBRAR: 3D檔Download
規格書303C-541219-25-05 Spec369 KBPDF:規格書Download
