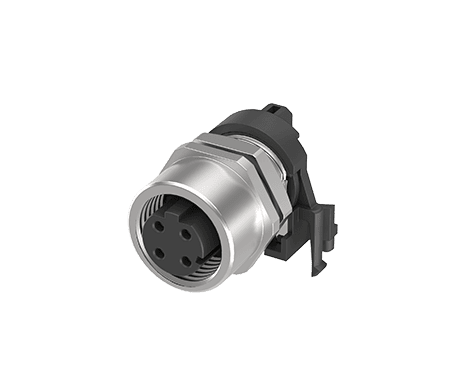

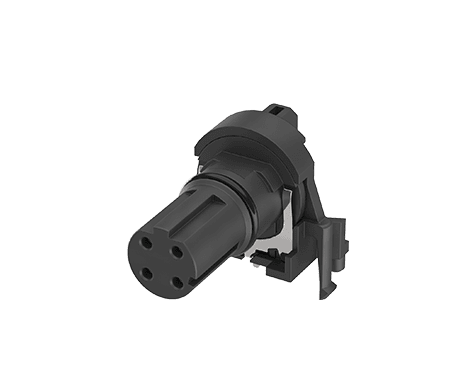

M12 Two Piece Insert, D-Code, XXPin Female R/A DIP Type
216D-XXFRA
M12 Two Piece Insert, D-Code, XXPin Female R/A DIP Type
立威科技 M12 兩件式連接器採用模組化設計，將插芯與外殼分離，讓工程師可依需求靈活搭配，並簡化庫存管理。符合 IEC 61076-2-101 標準，支援 A、D、X 編碼，提供螺紋前裝、後裝與推拉式等安裝方式，提升組裝效率與維護便利性。產品採工程塑膠插芯、鍍金接點與金屬外殼，搭配矽膠與 EPDM 密封圈，達 IP67 防護等級，可抵禦灰塵、油污與潮濕。憑藉耐用結構與優異導電性能，本系列特別適用於工業自動化、軌道交通、醫療設備，以及 PLC、現場總線與乙太網等應用，確保穩定連線與訊號完整性。
立威科技 M12 兩件式連接器採用模組化設計，將插芯與外殼分離，讓工程師可依需求靈活搭配，並簡化庫存管理。符合 IEC 61076-2-101 標準，支援 A、D、X 編碼，提供螺紋前裝、後裝與推拉式等安裝方式，提升組裝效率與維護便利性。產品採工程塑膠插芯、鍍金接點與金屬外殼，搭配矽膠與 EPDM 密封圈，達 IP67 防護等級，可抵禦灰塵、油污與潮濕。憑藉耐用結構與優異導電性能，本系列特別適用於工業自動化、軌道交通、醫療設備，以及 PLC、現場總線與乙太網等應用，確保穩定連線與訊號完整性。
Share:
功能介紹
- Fully compliant with IEC 61076-2-101
- Flexible modular design for easy assembly and maintenance
- Multiple coding options to support diverse communication protocols
- High ingress protection and electromagnetic compatibility (EMC)
- Space-saving and reliable connection suitable for harsh industrial environments
APPLICATIONS
- Industrial Automation
- Transportation & Rail Systems
- Ethernet & Fieldbus Communication
- Agriculture and Outdoor Equipment
- Machinery and Telecommunications
- Medical Devices

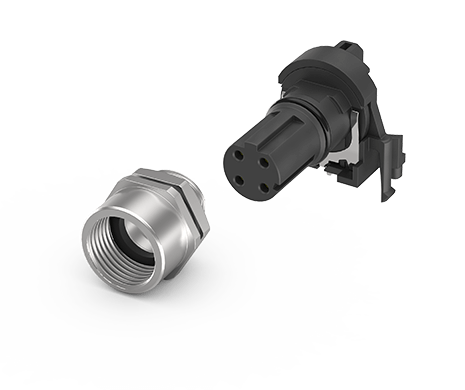

M12 Female Two-Piece Connector Installation Methods
Connector Assembly Compatibility
The M12 Two-Piece Connector features a versatile modular design, enabling effortless assembly and customizable pairing to meet diverse industrial needs. The following tables detail the compatibility of inserts, housings, and cables, allowing users to select the ideal components tailored to their specific requirements:
- M12 Two-Piece (Insert + Housing) Mating Table: Lists insert part numbers, codings, contact numbers, pin assignments, and compatible housing types (Threaded Front Mount, Threaded Rear Mount, Push-Pull Rear Mount).
- M12 Two-Piece Cable Compatibility Table: Displays the pairing of inserts with compatible housings and cables, including overmolded, field-installable, and push-pull soldering options.
This design is ideal for industrial, rail, or medical applications, offering flexible assembly solutions.
| Insert Part Number | Coding | Number of Contacts | Pin Assignment | Housing (Threaded, Rear Mount) | Housing (Threaded, Front Mount) | Housing (Push-Pull, Rear Mount) |
|---|---|---|---|---|---|---|
| 216D-04FRA | A-Coded | 4 |  | 216-00F0B | 216-00F0B-01 | 216-00F0B-03 |

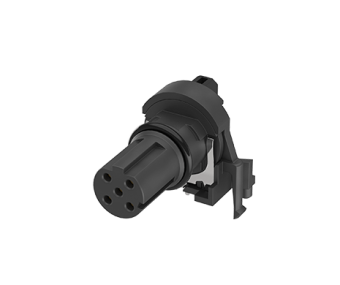

| 216D-05FRA | A-Coded | 5 |  | 216-00F0B | 216-00F0B-01 | 216-00F0B-03 |
| Insert Part Number | Housing Part Number | Cable Part Number |
|---|---|---|
| 216D-04FRA | 216-00F0B (Threaded, Rear Mount) 216-00F0B-01 (Threaded, Front Mount) 216-00F0B-03 (Push-Pull, Rear Mount) | 216D-04MO0 (Overmolded), 216D-04MF0 (Field-Installable) 216D-04MO0 (Overmolded), 216D-04MF0 (Field-Installable) 216D-04MO0 (Overmolded), 216D-04MF0 (Field-Installable) |
| 216D-05FRA | 216-00F0B (Threaded, Rear Mount) 216-00F0B-01 (Threaded, Front Mount) 216-00F0B-03 (Push-Pull, Rear Mount) | 216D-05MO0 (Overmolded), 216D-05MF0 (Field-Installable) 216D-05MO0 (Overmolded), 216D-05MF0 (Field-Installable) 216D-05MO0 (Overmolded), 216D-05MF0 (Field-Installable) |
規格介紹
| Current Rating | 4A |
|---|---|
| 4 Pin Voltage Rating | 250V |
| 5 Pin Voltage Rating | 60V |
|---|
| Operating temperature range | -40°C~+85°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 216D-04FRA | 80 KB | PDF: 工程用圖面 |  |
| 3D | 216D-04FRA | 198 KB | RAR: 3D檔 | |
| 圖面 | 216D-05FRA | 81 KB | PDF: 工程用圖面 | |
| 3D | 216D-05FRA | 230 KB | RAR: 3D檔 | |
| 圖面 | 216-00F0B | 146 KB | PDF: 工程用圖面 | |
| 圖面 | 216-00F0B-01 | 76 KB | PDF: 工程用圖面 | |
| 圖面 | 216-0004 | 64 KB | PDF: 工程用圖面 | |
| 3D | 216-00F0B-03 | 196 KB | RAR: 3D檔 | |
| 圖面 | 216-00F0B-03 | 168 KB | PDF: 工程用圖面 | |
