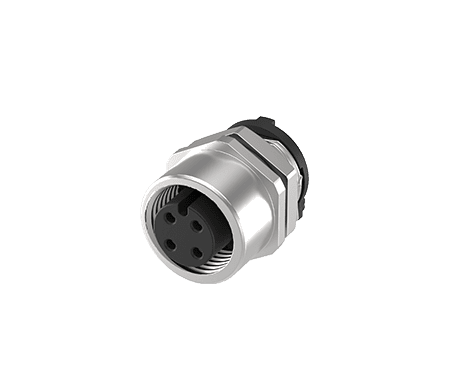

M12 Two Piece Insert, A-Code, XXPin Female DIP Type
216A-XXFSA
M12 Two Piece Insert, A-Code, XXPin Female DIP Type

立威科技 M12 兩件式連接器採用模組化設計,將插芯與外殼分離,讓工程師可依需求靈活搭配,並簡化庫存管理。符合 IEC 61076-2-101 標準,支援 A、D、X 編碼,提供螺紋前裝、後裝與推拉式等安裝方式,提升組裝效率與維護便利性。產品採工程塑膠插芯、鍍金接點與金屬外殼,搭配矽膠與 EPDM 密封圈,達 IP67 防護等級,可抵禦灰塵、油污與潮濕。憑藉耐用結構與優異導電性能,本系列特別適用於工業自動化、軌道交通、醫療設備,以及 PLC、現場總線與乙太網等應用,確保穩定連線與訊號完整性。
功能介紹

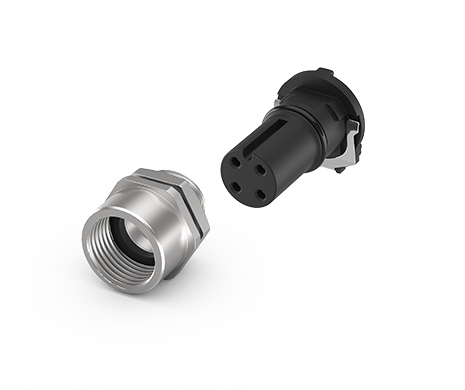

M12 two piece connector
  • 完全符合 IEC 61076-2-101 標準
  • 靈活的模組化設計,方便組裝與維護
  • 多種編碼選項,支援多樣通訊協議
  • 高防護等級與優異電磁相容性(EMC)
  • 節省空間且連接穩定,適用於嚴苛工業環境
市場應用
Industrial networks
  • 工業自動化
  • 運輸與鐵路系統
  • 乙太網與現場總線通訊
  • 農業與戶外設備
  • 機械與電信應用
  • 醫療設備



M12 母頭兩件式連接器安裝方式與面板開孔尺寸
M12 Female two-piece installation method
連接器組裝相容性

M12 兩件式連接器 採用多功能模組化設計,實現便捷的組裝與客製化搭配,滿足多元化的工業應用需求。以下表格提供插芯、外殼與電纜的相容性資訊,協助使用者依據實際需求選擇最適合的組件:

  • M12 兩件式(插芯 + 外殼)配接表:列出插芯料號、編碼方式、接點數、腳位定義,以及可相容的外殼類型(前鎖螺牙式、後鎖螺牙式、後鎖推拉式)。
  • M12 兩件式電纜相容性表:顯示插芯與對應外殼及電纜的搭配組合,包括包覆成型、現場安裝式與推拉焊接式選項。

此設計特別適用於工業、自動化、軌道運輸及醫療應用,提供靈活多樣的組裝解決方案。

M12 兩件式(插芯 + 外殼)配接表
Insert
Part Number
CodingNumber of
Contacts
Pin AssignmentHousing
(Threaded, Front Mount)
Housing
(Threaded, Rear Mount)
Housing
(Push-Pull, Rear Mount)

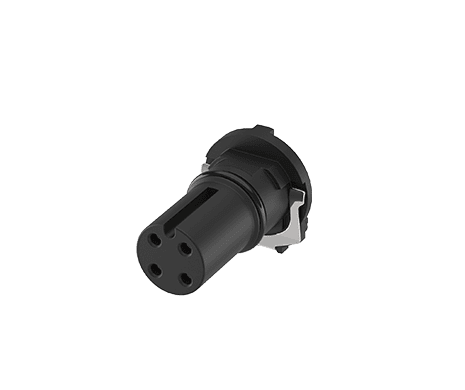

             216A-04FSA             A-Coded4Pin Assignment             216-00F0B             216-00F0B-01216-00F0B-03

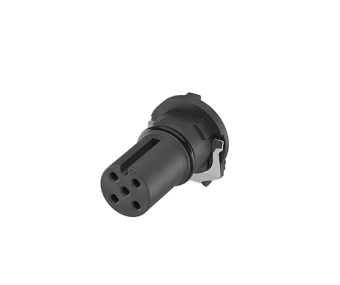

216A-05FSAA-Coded5Pin Assignment216-00F0B216-00F0B-01216-00F0B-03

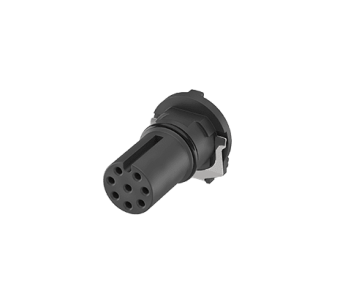

216A-08FSAA-Coded8Pin Assignment216-00F0B             216-00F0B-01216-00F0B-03

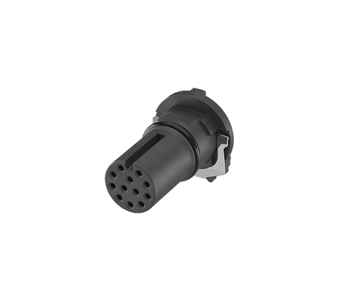

216A-12FSAA-Coded12Pin Assignment216-00F0B             216-00F0B-01216-00F0B-03

M12 兩件式線材相容性表
Insert Part NumberHousing Part NumberCable Part Number
             216A-04FSA             216-00F0B (Threaded, Front Mount)
216-00F0B-01 (Threaded, Rear Mount)
216-00F0B-03 (Push-Pull, Rear Mount)
216A-04MO0 (Overmolded), 216A-04MF1 (Field-Installable)
216A-04MO0 (Overmolded), 216A-04MF1 (Field-Installable)
216A-04MO0 (Overmolded), 216A-04MF1 (Field-Installable), 216A-04MO1 (Push-Pull Cable Soldering)
216A-05FSA216-00F0B (Threaded, Front Mount)
216-00F0B-01 (Threaded, Rear Mount)
216-00F0B-03 (Push-Pull, Rear Mount)
216A-05MO0 (Overmolded), 216A-05MF1 (Field-Installable)
216A-05MO0 (Overmolded), 216A-05MF1 (Field-Installable)
216A-05MO0 (Overmolded), 216A-05MF1 (Field-Installable), 216A-05MO1 (Push-Pull Cable Soldering)
216A-08FSA216-00F0B (Threaded, Front Mount)
216-00F0B-01 (Threaded, Rear Mount)
216-00F0B-03 (Push-Pull, Rear Mount)
216A-08MO0 (Overmolded), 216A-08MF1 (Field-Installable)
216A-08MO0 (Overmolded), 216A-08MF1 (Field-Installable)
216A-08MO0 (Overmolded), 216A-08MF1 (Field-Installable), 216A-08MO1 (Push-Pull Cable Soldering)
216A-12FSA216-00F0B (Threaded, Front Mount)
216-00F0B-01 (Threaded, Rear Mount)
216-00F0B-03 (Push-Pull, Rear Mount)
216A-12MO0 (Overmolded), 216A-12MF1 (Field-Installable)
216A-12MO0 (Overmolded), 216A-12MF1 (Field-Installable)
216A-12MO0 (Overmolded), 216A-12MF1 (Field-Installable), 216A-12MO1 (Push-Pull Cable Soldering)
規格介紹
ELECTRICAL
2~4 Pin Current Rating4A
2~4 Pin Voltage Rating250V
5 Pin Current Rating4A
5 Pin Voltage Rating60V
6~8 Pin Current Rating2A
6~8 Pin Voltage Rating30V
9~12 Pin Current Rating1.5A
9~12 Pin Voltage Rating30V
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
下載
類別標題大小文件類型下載
圖面216A-04FSA80 KBPDF: 工程用圖面Download
3D216A-04FSA100 KBRAR: 3D檔Download
圖面216A-05FSA81 KBPDF: 工程用圖面Download
3D216A-05FSA111 KBRAR: 3D檔Download
圖面216A-08FSA82 KBPDF: 工程用圖面Download
3D216A-08FSA150 KBRAR: 3D檔Download
圖面216A-12FSA87 KBPDF: 工程用圖面Download
3D216A-12FSA195 KBRAR: 3D檔Download
圖面216-00F0B146 KBPDF: 工程用圖面Download
圖面216-00F0B-0176 KBPDF: 工程用圖面Download
圖面216-000464 KBPDF: 工程用圖面Download
3D216-00F0B-03196 KBRAR: 3D檔Download
圖面216-00F0B-03168 KBPDF: 工程用圖面Download
