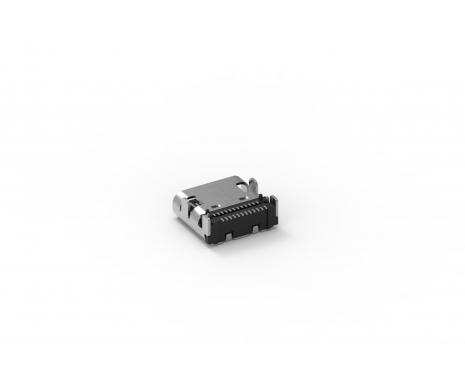

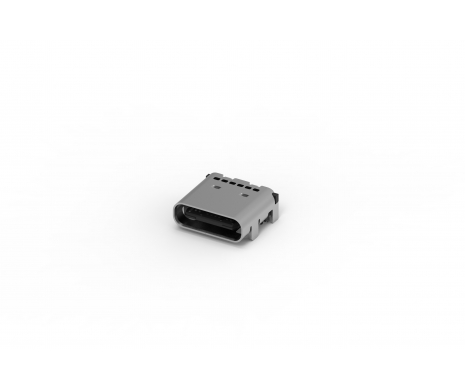

USB Type C Receptacle, w/SMD
217B-BC02
USB Type C Receptacle, 24Pin Dual Row w/SMD, 5µ"

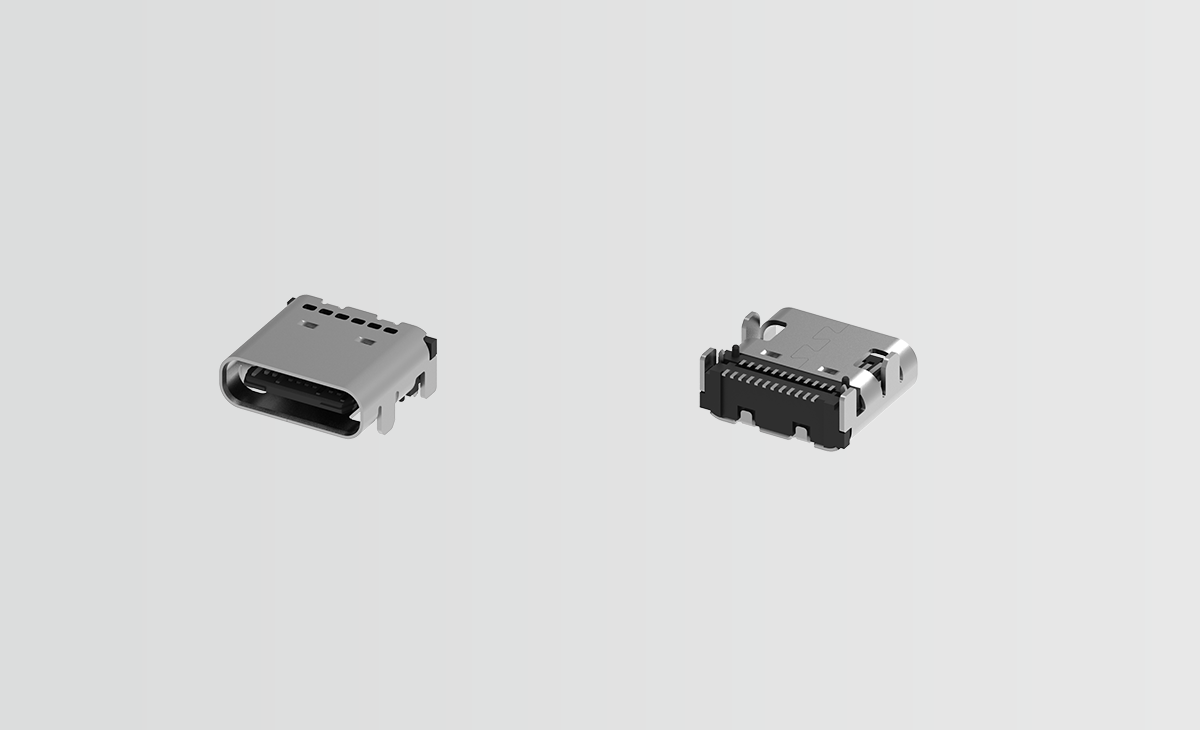

USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 10GBit/s and allow 500 mA device charging support.
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 10GBit/s and allow 500 mA device charging support.
Share:
功能介紹
應用領域
- 堅固的環境
- 戶外使用
- 汽車應用
- 工業應用
- 通信設備
- 工廠自動化
- 家庭應用
- 船舶應用
- 數據存儲
- 小型手持設備
規格介紹
| Current Rating (Vbus) | 5A |
|---|---|
| Current Rating (Vconn & GND) | 1.25A |
| Current Rating (other pin) | 0.25A |
| Voltage Rating | 5VAC max |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | -55°C~+85°C |
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 217B-BC02 | 195 KB | PDF: 工程用圖面 |  |
| 3D | 217B-BC02 | 420 KB | RAR: 3D檔 | |
| 規格書 | 217B-BC02 | 512 KB | PDF:規格書 | |
