RJ45 PoE++ Type3, 1x1, 5G BASE-T, w/LED
214A-R434

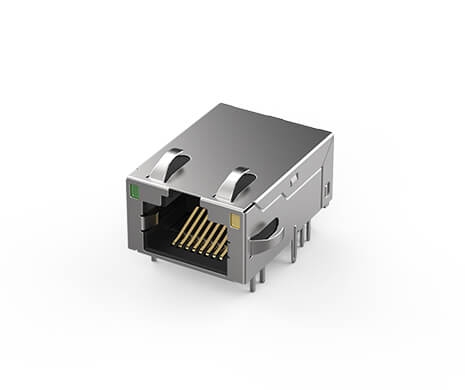

RJ45 PoE++ Type3 Jack, 1x1 Port, R/A Latch UP w/LED, 57V 720mA, 30u", 5G BASE-T

立威科技RJ45乙太網路連接器(PoE) 是一款整合式連接器模組,支援單埠最高60W供電以及10/100至10G不同的高速傳輸速度。符合IEEE 802.3bt 規範,工業規格設計適用於寬溫-40℃ to +85℃環境等特色,讓產品更符合廣泛的應用與需求。
功能介紹
*
  • 具相容性: 產品符合規範標準且具向下相容特性。
  • 多功能性: 供電端(PSE)及受電端(PD)產品皆可使用。
  • 高整合度: 基於現有網路架構應用, 可減少佈線成本並提高擴充性。
  • 產品種類多樣化:  從10/100至10G高速傳輸應用,支援不同傳輸速度需求。
  • 可靠信: 寬溫 -40°C~+85°C 符合嚴苛的工業應用環境。
  • 實用度: 專為30W以上供電需求的客戶提供下一代PoE產品。
*
APPLICATIONS
  • Smart Buildings: Facilitates enterprise IoT integrations like connected LED lighting.
  • Digital Security: Powers PTZ cameras for enhanced urban security.
  • Kiosks: Supports interactive and multimedia kiosk systems.
  • Point of Sale (POS) Terminals: Enhances reliability and functionality in retail settings.
  • Thin Clients: Enables more efficient network computing devices.
  • IOT: Improves the deployment and functionality of network access points.
規格介紹
ELECTRICAL
Inductance At 100 KHz, 100 mV 8mADC Bias120 uH Min.
Insertion Loss-1.0 dB Max. @ 1-125 MHz
-2.0 dB Max. @125-250MHz
Return Loss-16dB Min. @ 1-40MHz
Return Loss-13dB Min. @ 40-80MHz
Return Loss-11dB Min. @ 80-125MHz
Return Loss-8dB Min. @ 125-250MHz
Cross Talk1-100MHz -30dB Min.
100-250MHz -25dB Min.
Common Mode Rejection-30dB Min. @1-125MHz
-25dB Min. @125-250MHz
Isolation Voltage2250Vrms / 60 Seconds
Voltage Rating57VDC Max.
Current Rating720mADC Max.
Turns Ratio@100KHz, 0.1V: 1:1±2%
MECHANICAL
Operating Life750 Cycles Min.
ENVIRONMENTAL
Storage-40℃~+85℃
Operation-40℃~+85℃
Soldering Temperature255~265℃ (5~10 Seconds)
下載
類別標題大小文件類型下載
規格書214A-60W Series Spec1013 KBPDF:規格書Download
圖面214A-R434128 KBPDF: 工程用圖面Download
3D214A-R434892 KBRAR: 3D檔Download
規格書214A Packaging206 KBPDF 檔案Download
