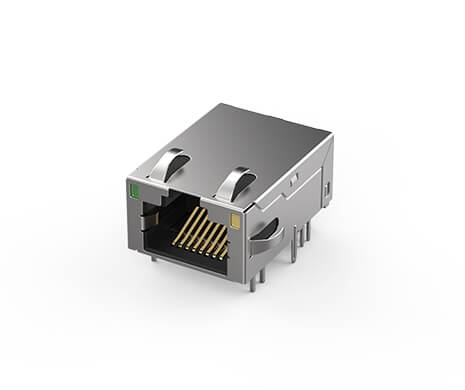

RJ45 PoE++ Type3, 1x1, 10/100 BASE-T, w/LED
214A-R131
RJ45 PoE++ Type3 Jack, 1x1 Port, R/A Latch UP w/LED, 57V 720mA, 30u", 10/100 BASE-T

立威科技RJ45乙太網路連接器(PoE) 是一款整合式連接器模組,支援單埠最高60W供電以及10/100至10G不同的高速傳輸速度。符合IEEE 802.3bt 規範,工業規格設計適用於寬溫-40℃ to +85℃環境等特色,讓產品更符合廣泛的應用與需求。
功能介紹
*
  • 具相容性: 產品符合規範標準且具向下相容特性。
  • 多功能性: 供電端(PSE)及受電端(PD)產品皆可使用。
  • 高整合度: 基於現有網路架構應用, 可減少佈線成本並提高擴充性。
  • 產品種類多樣化:  從10/100至10G高速傳輸應用,支援不同傳輸速度需求。
  • 可靠信: 寬溫 -40°C~+85°C 符合嚴苛的工業應用環境。
  • 實用度: 專為30W以上供電需求的客戶提供下一代PoE產品。
*
APPLICATIONS
  • Smart Buildings: Facilitates enterprise IoT integrations like connected LED lighting.
  • Digital Security: Powers PTZ cameras for enhanced urban security.
  • Kiosks: Supports interactive and multimedia kiosk systems.
  • Point of Sale (POS) Terminals: Enhances reliability and functionality in retail settings.
  • Thin Clients: Enables more efficient network computing devices.
  • IOT: Improves the deployment and functionality of network access points.
規格介紹
ELECTRICAL
Inductance At 100 KHz, 100 mV 8mADC Bias350 uH Min.
Inductance At 100 KHz, 100 mV 19mADC Bias120 uH Min.
Insertion Loss-1.0 dB Max. @ 1-100 MHz
Return Loss-16dB Min. @ 1-40MHz
Return Loss-12dB Min. @ 40-60MHz
Return Loss-10dB Min. @ 60-80MHz
Cross Talk1-100MHz -30dB Min.
Common Mode Rejection-30dB Min. @1-100MHz
Isolation Voltage2250Vrms / 60 Seconds
Voltage Rating57VDC Max.
Current Rating720mADC Max.
Turns Ratio@100KHz, 0.1V: 1:1±2%
MECHANICAL
Operating Life750 Cycles Min.
ENVIRONMENTAL
Storage-40℃~+85℃
Operation-40℃~+85℃
Soldering Temperature255~265℃ (5~10 Seconds)
