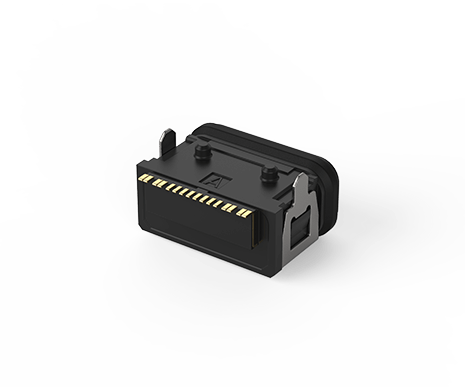

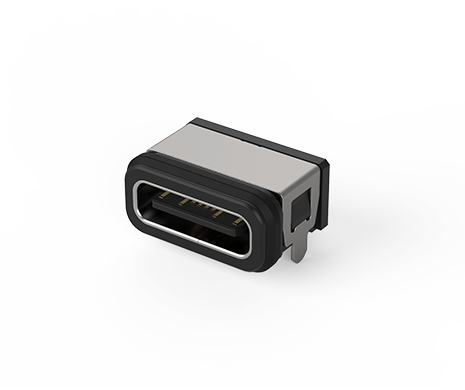

Waterproof USB Type C, 16 Pin Single Row,SMD Type
217B-CA04
USB Type C Receptacle, 16 Pin Single Row, SMD Type, IPX8 Waterproof, w/ Oring, 3u''
ATTEND's waterproof USB Type-C connector features industry-leading IPX8 waterproof performance, complying with IEC 60529 standards. Specifically designed for harsh environmental conditions with moisture, these connectors ensure reliable performance. They achieve impressive data transfer rates of 10 Gbps and support high-speed communication and power delivery (20V, 5A). ATTEND's USB Type-C connector series provides the most flexible and cost-effective solution for PCB designers.
ATTEND's waterproof USB Type-C connector features industry-leading IPX8 waterproof performance, complying with IEC 60529 standards. Specifically designed for harsh environmental conditions with moisture, these connectors ensure reliable performance. They achieve impressive data transfer rates of 10 Gbps and support high-speed communication and power delivery (20V, 5A). ATTEND's USB Type-C connector series provides the most flexible and cost-effective solution for PCB designers.
Share:
規格介紹
| Current Rating | 5A for Vbus |
|---|---|
| Voltage Rating | 20VAC max |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
| Operating temperature range | -40°C~+85°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 217B-CA04 | 128 KB | PDF: 工程用圖面 |  |
| 3D | 217B-CA04 | 378 KB | RAR: 3D檔 | |
| 規格書 | 217B-CA04 | 337 KB | PDF:規格書 | |
