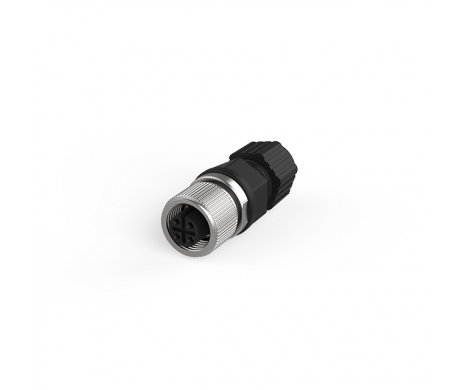

M12 A-Code, Female For Field Installable, Plastic
216A-XXFF1
M12 A-Code Plug for Cable, Female For Field Installable, Plastic, G/F
ATTEND’s M-series Field-Installable Plastic Circular Connector is a solder-type connector. It boasts a patented design featuring a removable insert/shell, which simplifies field rework.
This connector has been extensively used in various fields over the years, including industrial automation, Ethernet systems, intelligent transportation systems, traffic safety systems, and outdoor equipment. It provides high power and high frequency support, making it a preferred choice for power supply solutions that require high-speed signal transmission in harsh environments, as well as for industrial and rugged applications. Furthermore, its robust construction and IP67 rating ensure durability and resistance to dust and water. Its standard coding system aids in preventing incorrect pairing, making it an optimal solution for outdoor applications.
ATTEND’s M-series Field-Installable Plastic Circular Connector is a solder-type connector. It boasts a patented design featuring a removable insert/shell, which simplifies field rework.
This connector has been extensively used in various fields over the years, including industrial automation, Ethernet systems, intelligent transportation systems, traffic safety systems, and outdoor equipment. It provides high power and high frequency support, making it a preferred choice for power supply solutions that require high-speed signal transmission in harsh environments, as well as for industrial and rugged applications. Furthermore, its robust construction and IP67 rating ensure durability and resistance to dust and water. Its standard coding system aids in preventing incorrect pairing, making it an optimal solution for outdoor applications.
Share:
功能介紹
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
Part Number | Pin Assignment | Pin Count |
---|---|---|
216A-04FF1 | 4Pin | |
216A-05FF1 | 5Pin |
Part Number | Pin Assignment | Pin Count |
---|---|---|
216A-08FF1 | 8Pin | |
216A-12FF1 | 12Pin |
規格介紹
4 Pin Current Rating | 4A |
---|---|
4 Pin Voltage Rating | 250V |
5 Pin Current Rating | 4A |
---|---|
5 Pin Voltage Rating | 60V |
8 Pin Current Rating | 2A |
---|---|
8 Pin Voltage Rating | 30V |
12 Pin Current Rating | 1.5A |
---|---|
12 Pin Voltage Rating | 30V |
Operating temperature range | -40°C~+85°C |
---|---|
Waterproof Level | IP67 |
