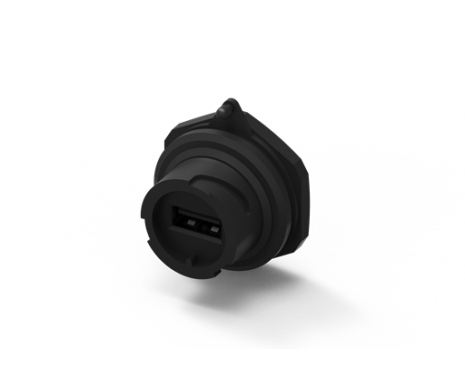

USB 2.0 A Type, Receptacle Waterproof, Straight PCB Type, GF
222A-01001
USB 2.0 A Type, Receptacle Waterproof, Straight PCB Type, GF
The sealed I/O connector enables use under the rugged environmental conditions, Through the potting of electronics in a compact plastic or metal housing with sealed connectors. Our sealed I/O series reaching the protection class IP67, to ensure your digital information, voltages power can be safely continued transmission under a harsh environment.
The sealed I/O connector enables use under the rugged environmental conditions, Through the potting of electronics in a compact plastic or metal housing with sealed connectors. Our sealed I/O series reaching the protection class IP67, to ensure your digital information, voltages power can be safely continued transmission under a harsh environment.
Share:
規格介紹
| Current Rating | 1A |
|---|---|
| Voltage Rating | 30V AC |
| Durability | 1,500 Cycle |
|---|---|
| Insertion Force | 30N Max. |
| Extraction Force | 10N Min. |
| Operating temperature range | -20°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 222A-01001 | 64 KB | PDF: 工程用圖面 |  |
| 3D | 222A-01001 | 415 KB | RAR: 3D檔 | |
