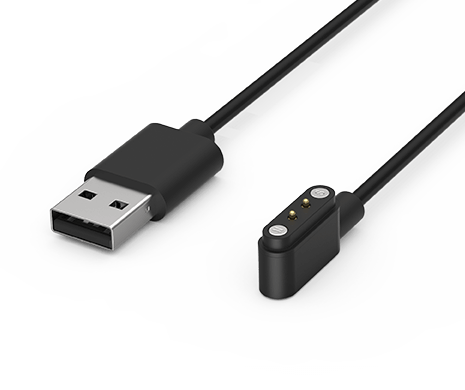

USB A to Pogo pin Cable, 2 pin black
US-AP2P-10001
ATTEND USB A 對 2Pin Pogo Pin 線材，具備磁吸式 Pogo 接點設計，適合反覆插拔且連接穩固。特別適用於充電、資料傳輸、臨時供電等需求，廣泛應用於可攜式設備、測試治具與模組化裝置。1 公尺線長提供彈性配置，黑色外被外觀簡約專業，是追求快速對接與接頭耐用性的理想選擇。
Share:
規格介紹
| Rated Current | ≦ 3A |
|---|---|
| Rated Voltage | 5V~24V |
| Contact Resistance | Initial: 30mΩ or less |
| Dielectric Withstanding Voltage | AC-500V/1min |
| Insulation Resistance | DC-500V 100MΩ.KM MIN at 20°C |
| Length | 1M |
|---|---|
| Connector | USB A Male,Pogo pin (2 pin) |
| Side A Angle | Straight |
| Side B Angle | Straight |
| Materials / Colors | TPE/Black |
| Number of Positions | 2pin |
| Durability | 20,000 cycles |
| Cable Features | w/ magnet |
| Weight | 15.8g |
| Operating Temperature Range | -30°C to +60 °C |
|---|---|
| Country of Origin | China |
