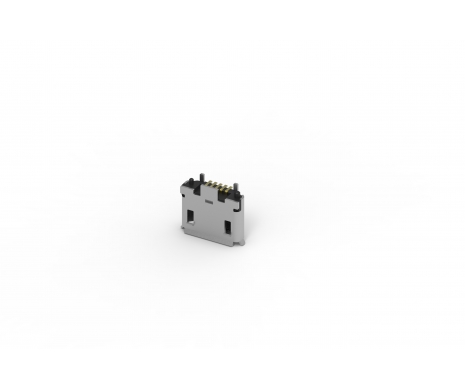

Micro USB 2.0, B Type, Vertical SMT Type
207F-BA00
Micro USB 2.0, B Type Receptacle, Vertical, SMT, GF
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
Share:
規格介紹
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 40V DC |
| Contact Resistance | 30mΩ max. |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 35N max. |
| Extraction Force | 8N max. |
| Operating temperature range | -30℃~+65℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ 10Sec |
|---|---|
| Recommended PCB Thickness | 1.0mm |
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 207F-BA00 | 125 KB | PDF: 工程用圖面 |  |
| 3D | 207F-BA00 | 258 KB | RAR: 3D檔 | |
