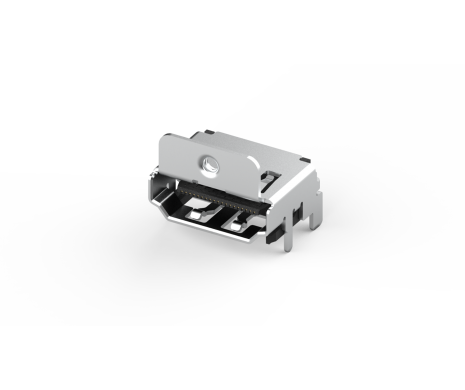

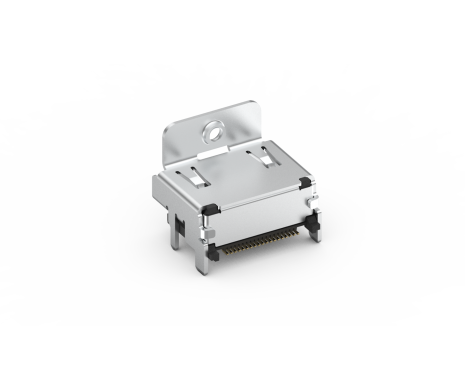

HDMI 2.1 A type Connector, R/A w/Flange
206B-SA01
HDMI Connector, R/A Socket, 2.1 A type with Flange (H=8.78), G/F
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
Share:
規格介紹
| Current Rating | 0.5A max. |
|---|---|
| Voltage Rating | 100V AC/DC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 100 MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Insertion Force | 4.5kgf |
|---|---|
| Extraction Force | 1kgf~4kgf |
| Operating temperature range | -25°C~+85°C |
|---|
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 206B-SA01 | 167 KB | PDF: 工程用圖面 |  |
| 3D | 206B-SA01 | 387 KB | RAR: 3D檔 | |
