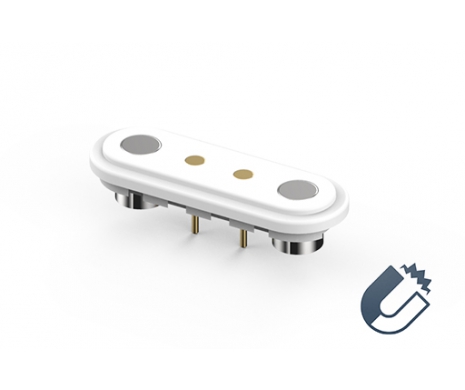

Pogo Pin Magnet Type, 2P H=4.3mm, Pitch 4.0
303C-C4315-40-02
Pogo Pin Magnet Type, 2Pin H=4.3mm, Pitch 4.0, DIP, 5u'', White
Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.
Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.
Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
功能介紹
INTRODUCTION:
● Easy, fast connection
● High number of mating cycles
● Breakaway function
● Cable design and Assembly with Magnetic connector
● Easy, fast connection
● High number of mating cycles
● Breakaway function
● Cable design and Assembly with Magnetic connector
APPLICATION:
- Smart wearable products
- Office device：ePaper meeting room booking displays
- Medical industry：blood pressure monitors, heart rate monitors
規格介紹
| Current Rating | 2A |
|---|---|
| Voltage Rating | 12 VDC |
| Contact Resistance | 50mΩ |
| Operating temperature range | -30°C~+60°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | US-4P2P-2022008A | 170 KB | PDF: 工程用圖面 |  |
| 圖面 | 303C-C4315-40-02 | 70 KB | PDF: 工程用圖面 | |
