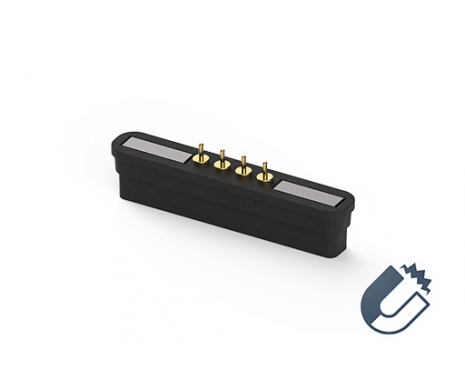

Pogo Pin Magnet Type, 4P, 28.0x4.8x6h, 500g, 2A, black
303D-L280M04
Pogo Pin Magnet Type, 4P, 28.0x4.8x6h, 500g, 2A, black

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
功能介紹
*
Conclusion:
  • High Stroke
  • High Durability
  • Long Lifetime
  • Ease of Attaching
  • Stable Current Flow
*
Application:
  • Antenna
  • Board To Board Connection
  • Medical Device
  • Tracking Device
  • Portable Device
*
規格介紹
ELECTRICAL
Current Rating2A
Voltage Rating12 VDC
Contact Resistance50mΩ
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
下載
類別 標題 文件類型標題大小文件類型下載
圖面303D-L280M0482 KBPDF: 工程用圖面Download
3D303D-L280M04115 KBRAR: 3D檔Download
