Pogo Pin Magnet Type, 3P, 25.5x4.8x6h, 500g, 2A, black
303D-L255M03
Pogo Pin Magnet Type, 3P, 25.5x4.8x6h, 500g, 2A, black

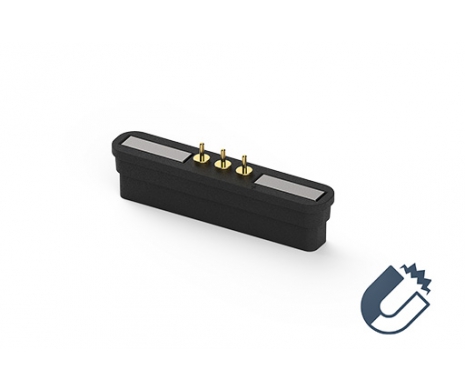

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
功能介紹
*
Conclusion:
  • High Stroke
  • High Durability
  • Long Lifetime
  • Ease of Attaching
  • Stable Current Flow
*
Application:
  • Antenna
  • Board To Board Connection
  • Medical Device
  • Tracking Device
  • Portable Device
*
規格介紹
ELECTRICAL
Current Rating2A
Voltage Rating12 VDC
Contact Resistance50mΩ
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
下載
類別標題大小文件類型下載
圖面303D-L255M0382 KBPDF: 工程用圖面Download
3D303D-L255M0394 KBRAR: 3D檔Download
規格書303D-L255M03 Spec282 KBPDF:規格書Download
