Pogo Pin Magnet, Machine Pin 2P, 10.0D, DIP
303D-D100F02

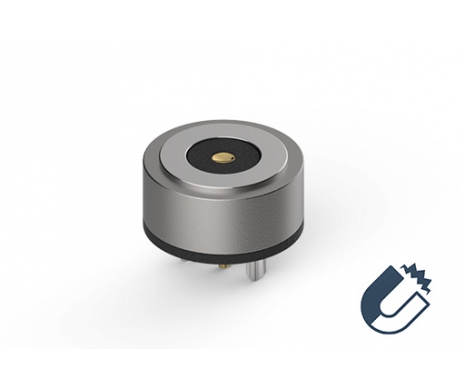

Pogo Pin Magnet Type, Machine Pin 2P, 10.0D, DIP, 10u'', 500g, 5A, black

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
功能介紹
*
INTRODUCTION:
● Easy, fast connection
● High number of mating cycles
● Breakaway function
● Cable design and Assembly with  Magnetic connector
*
APPLICATION:
  • Smart wearable products
  • Office device：ePaper meeting room booking displays
  • Medical industry：blood pressure monitors, heart rate monitors
規格介紹
ELECTRICAL
Current Rating1A per pin
Voltage Rating12 VDC
Contact Resistance30mΩ
Insulation Resistance500MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Pogo pin contact force40g±20g at 0.4mm work stoke, full stroke 0.6mm
Durability20,000 Cycles
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
下載
類別 標題 文件類型標題大小文件類型下載
圖面303D-D100F0271 KBPDF: 工程用圖面Download
3D303D-D100F0244 KBRAR: 3D檔Download
規格書303D-D100X02 Spec282 KBPDF:規格書Download
