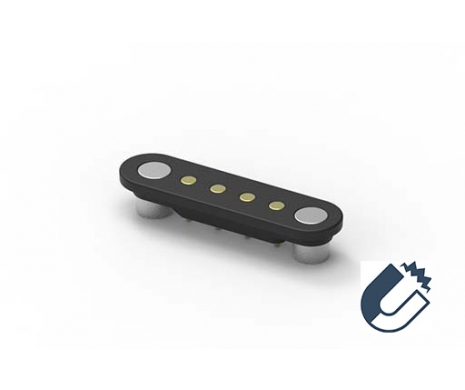

Pogo Machine Pin, Magnet, 4P H=4.15mm, Pitch 3.0
303C-C4115-30-04
Pogo Machine Pin, Magnet Type, 4P H=4.15mm, Pitch 3.0, DIP, 20u'', black

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
功能介紹
*
INTRODUCTION:
● Easy, fast connection
● High number of mating cycles
● Breakaway function
● Cable design and Assembly with  Magnetic connector
*
APPLICATION:
  • Smart wearable products
  • Office device：ePaper meeting room booking displays
  • Medical industry：blood pressure monitors, heart rate monitors
規格介紹
ELECTRICAL
Current Rating1A per pin
Voltage Rating12 VDC
Contact Resistance30mΩ
Insulation Resistance500MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Pin Strength9.8N min.
Durability20,000 Cycles
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
下載
類別標題大小文件類型下載
圖面303C-C4115-30-04145 KBPDF: 工程用圖面Download
規格書303C-C4115-30-04 Spec282 KBPDF:規格書Download
