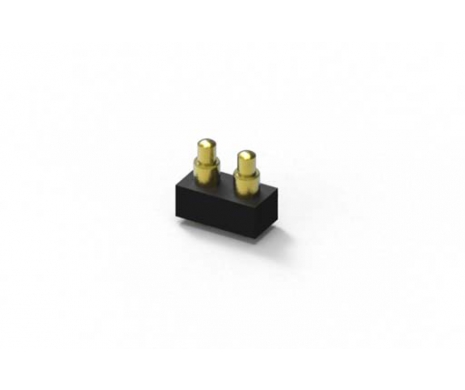

Pogo Pin, 02 Pin, 2.54P, 10u'', 5.0H 1.3 Stroke, SMT
303B-371318-254-02
Pogo Pin, 02 Pin, 2.54P, 10u'', 5.0H 1.3 Stroke, SMT
Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.
Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.
Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
功能介紹
Conclusion:
- High Stroke
- High Durability
- Long Lifetime
- Ease of Attaching
- Stable Current Flow
Application:
- Antenna
- Board To Board Connection
- Medical Device
- Tracking Device
- Portable Device
規格介紹
Current Rating | 2A |
---|---|
Voltage Rating | 30V |
Contact Resistance | 50mΩ Max, at working height |
Spring Force | 0.7N±0.2N at working height |
---|---|
Durability | 10,000 Cycles |
- To avoid arcing issue, the adaptor start to power supply after connector mated fully.
- Based on the Engineer drawing, shall not exceed on the working height the maximum allowed compress.
- To ensure the best usage, please operate it based supply after connector mated fully.
- How to order : 303B-371318-254-XX
pin count : XX= 02~16 (Please contact with sales for the pins count available)
