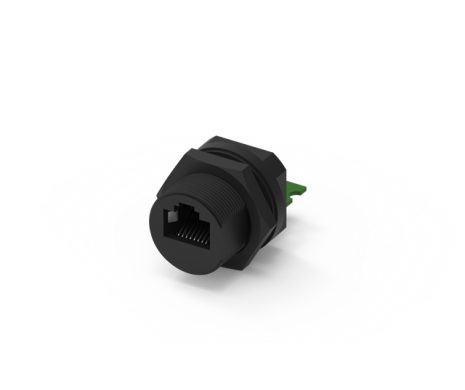

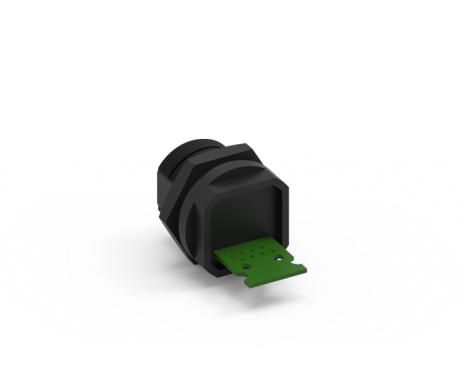

RJ45 8P8C Waterproof Socket, With PCB

222A-03002

RJ45 8P8C Waterproof Socket, With PCB

ATTEND's RJ45 8P8C circular waterproof connectors can be used in harsh environmental conditions by encapsulating electronic components in compact plastic or metal housing with a sealed connector. Sealed I/O series connectors reach IPX7 protection level, ensuring digital information and voltage power can be transmitted safely, completely, and continuously.

配件

功能介紹

Current rating: 1.5 A (with PCB/adapter type), 2.0 A (straight PCB type)
Voltage rating: 125 V (with PCB/adapter type), 250 V (straight PCB type), AC/DC
Waterproof level: IPX7
High corrosion resistance (salt mist, sterilization, chemicals)
Integrated kit can be applied to off-the-shelf RJ45 patch cords
Operating temperature range: -40°C to +85°C

APPLICATION:

Rugged environmental
Outdoor usage
Automotive
Industrial
Communication
Factory automation
Marine

規格介紹

ELECTRICAL
Current Rating	1.5A
Voltage Rating	125V AC/DC

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C
Waterproof Level	IPX7

下載

類別	標題	大小	文件類型
圖面	222A-03003	117 KB	PDF: 工程用圖面
3D	222A-03003	365 KB	RAR: 3D檔
3D	222A-03002	782 KB	RAR: 3D檔
圖面	222A-03002	83 KB	PDF: 工程用圖面
圖面	222-0004	53 KB	PDF: 工程用圖面
