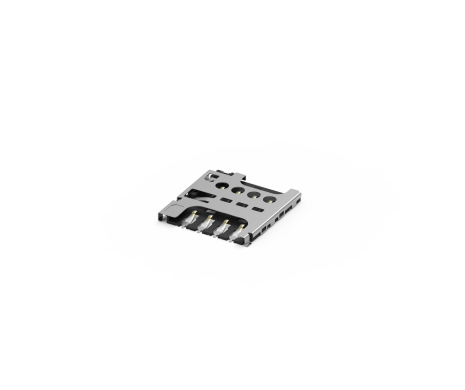

Micro SIM Socket, Push-Pull Type
115I-BEAA-RA1
Micro SIM Card Socket, Push-Pull Type, 8 Pin, 15u'', w/shell
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
功能介紹
APPLICATION:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
規格介紹
| Current Rating | 0.5A |
|---|---|
| Voltage Rating | 10VDC |
| Contact Resistance | 100mΩ Max |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC for 1 minute |
| Terminal Durability | 500 Cycle |
|---|---|
| Contact Normal Force | 0.3N~0.35N |
| Insert Force | 10N |
| Withdrawal Force | 0.5N |
| Operating temperature range | -40°C to +85°C |
|---|---|
| Storage temperature range | -40°C to +85°C |
| Recommended IR Reflow Temperature | 260°C 10Sec |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115I-BEAA-RA1 | 334 KB | PDF: 工程用圖面 |  |
| 3D | 115I-BEAA-RA1 | 294 KB | RAR: 3D檔 | |
| 規格書 | 115I-BEAA-RA1 | 290 KB | PDF:規格書 | |
