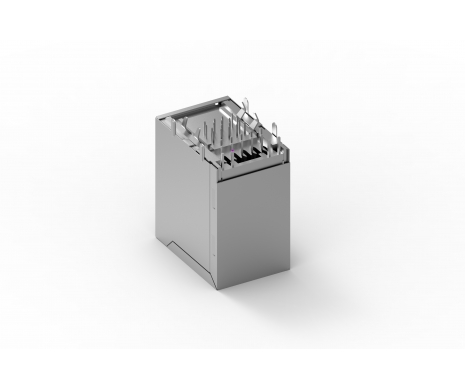

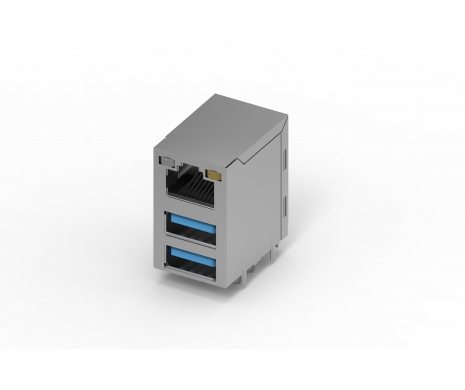

Combo USB, Dual USB 3.0 + RJ45 Magnetic, R/A DIP Type
209G-CCN0
Combo USB, Dual USB 3.0 + RJ45 Magnetic, Right Angle, DIP
ATTEND 209G-CCN0 combo USB is combined with two USB 3.0 port and RJ45 Magnetic connectors together that design for effectively save the PCB layout space and decrease the product size.
ATTEND 209G-CCN0 combo USB is combined with two USB 3.0 port and RJ45 Magnetic connectors together that design for effectively save the PCB layout space and decrease the product size.
Share:
規格介紹
| Current Rating: USB3.0 | 1.8A per pin |
|---|---|
| Current Rating: RJ45 | 1A per pin |
| Voltage Rating: USB3.0 | 30VAC |
| Voltage Rating: RJ45 | 150VAC |
| Contact Resistance | 50MΩ |
| Insulation Resistance: USB3.0 | 100MΩ |
| Insulation Resistance: RJ45 | 500MΩ |
| Dielectric Withstanding Voltage: USB3.0 | 100VAC |
| Dielectric Withstanding Voltage: RJ45 | 1000VAC |
| Durability: USB 3.0 | 1,500 Cycle |
|---|---|
| Durability:RJ45 | ７５0 Cycle |
| Durability | 25 Cycle |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.6mm |
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 209G-CCN0 | 228 KB | PDF: 工程用圖面 |  |
| 3D | 209G-CCN0 | 70 KB | RAR: 3D檔 | |
