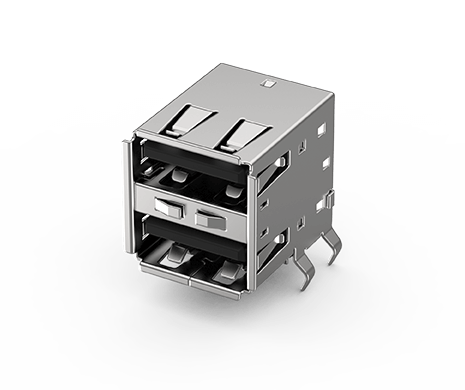

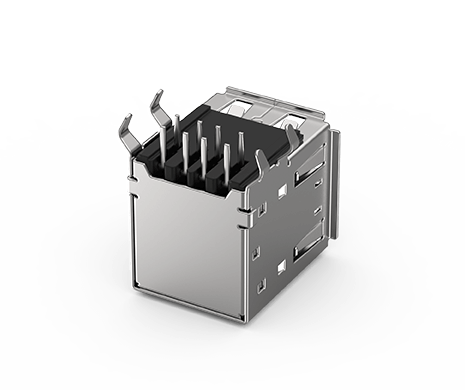

Combo USB, Dual USB 2.0, R/A DIP Type
205G-AAN0-RA2
Dual USB 2.0, A Type Receptacle, Right Angle, DIP, GF
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
Share:
規格介紹
| Current Rating | 1.5A per pin |
|---|---|
| Voltage Rating | 250V AC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 750VAC |
| Durability | 1,500 Cycle |
|---|---|
| Insertion Force | 435N max. |
| Extraction Force | 10N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 205G-AAN0-RA2 | 185 KB | PDF: 工程用圖面 |  |
| 3D | 205G-AAN0-RA2 | 638 KB | RAR: 3D檔 | |
