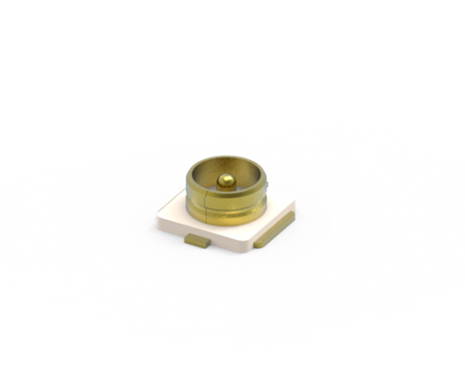

Micro Coaxial RF Connector, H=1.25mm 3 PAD
321A-331251
Micro Coaxial RF Connector, H=1.25mm 3 PAD
A Micro coaxial RF connector (radio frequency connector) is designed to work at radio frequency in the multi-megahertz range. RF connector generally used with coaxial cable and are designed to maintain the shielding that the coaxial design offers. ATTEND provides durable working function RF connector solution to ensure your application working regularly.
A Micro coaxial RF connector (radio frequency connector) is designed to work at radio frequency in the multi-megahertz range. RF connector generally used with coaxial cable and are designed to maintain the shielding that the coaxial design offers. ATTEND provides durable working function RF connector solution to ensure your application working regularly.
Share:
功能介紹
FEATURES:
● Small mounting area/ Light weight
● Meet slim equipment requirements
● Supports high frequency
● Small mounting area/ Light weight
● Meet slim equipment requirements
● Supports high frequency
APPLICATION:
Wi-Fi, 4G LTE, 5G and sub-6 GHz, Bluetooth, GPS, WiGig, M2M, IoT, SigFox, WiSUN, NB-IoT and LoRa
Wi-Fi, 4G LTE, 5G and sub-6 GHz, Bluetooth, GPS, WiGig, M2M, IoT, SigFox, WiSUN, NB-IoT and LoRa
規格介紹
| Current Rating | 1A |
|---|---|
| Voltage Rating | 60VAC |
| Contact Resistance | Inner Contact│Initially: 20mΩ |
| Contact Resistance | Ground Contact│Initially: 10mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 200VAC for 1 minute |
| VSWR | 100MHz to 3GHz│1.3Max |
| VSWR | 3GHz to 6GHz│1.4Max |
| Nominal Characteristic Impedance | 50Ω |
| Applicable Frequency | 100MHz to 6GHz |
| Durability | 30 Cycle |
|---|
| Operating temperature range | -40°C to +85°C |
|---|---|
| Storage temperature range | -40°C to +85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 321A-331251 | 184 KB |  | |
| 規格書 | 321A-331251 | 294 KB | PDF:規格書 | |
| 3D | 321A-331251 | 25 KB | RAR: 3D檔 | |
