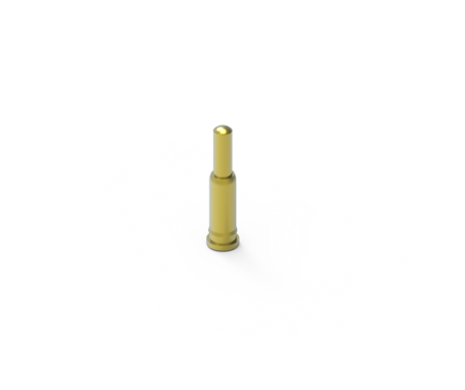

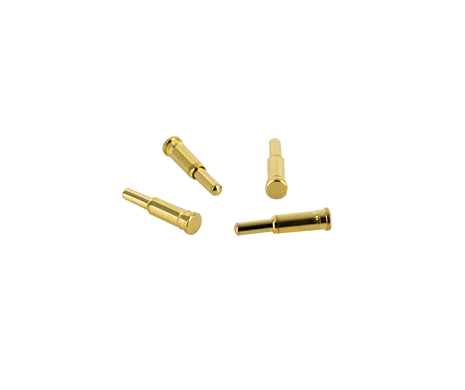

Pogo Pin, Single pin, H=7.50 mm, 10u''
303A-753018-000
Pogo Pin, Single pin, H=7.50 mm, 10u''
A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.
Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.
Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
Share:
功能介紹
Conclusion:
- High Stroke
- High Durability
- Long Lifetime
- Ease of Attaching
- Stable Current Flow
Application:
- Antenna
- Board To Board Connection
- Medical Device
- Tracking Device
- Portable Device
.png)
規格介紹
| Current Rating | 2A |
|---|---|
| Voltage Rating | 30V |
| Contact Resistance | 50mΩ Max. |
| Durability | 10,000 Cycle |
|---|---|
| Spring Force | 0.85N±0.2N at working height |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | - 40°C~+85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 303A-753018-000 | 43 KB | PDF: 工程用圖面 |  |
| 3D | 303A-753018-000 | 7 KB | RAR: 3D檔 | |
