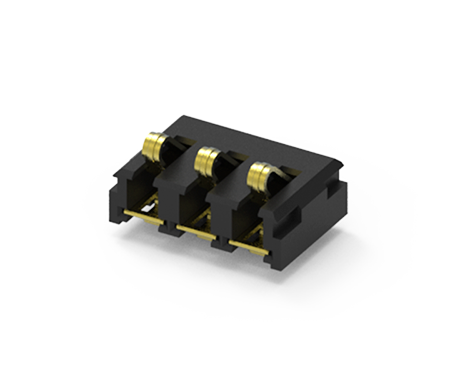

Battery Connector, Vertical, Pitch 2.5, H=2.6, 5u''
304D-2625XX
Battery Connector, Vertical, SMT, Pitch 2.5, H=2.6,XX Pin, 5u''
Our Battery connector was original design for battery charging, it also suitable for other applications required to provide stable and continuous power transmission to the device. It is good chose for compact, robust, high current density, board to board mating connectivities.
Our Battery connector was original design for battery charging, it also suitable for other applications required to provide stable and continuous power transmission to the device. It is good chose for compact, robust, high current density, board to board mating connectivities.
Share:
規格介紹
| Current Rating | 3A |
|---|---|
| Voltage Rating | 12V |
| Contact Resistance | 40mΩ Max. |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 Cycle |
|---|---|
| Normal Force | 200g Min. at Stroke 1.1mm |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | - 40°C~+105°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 304D-2625XX | 186 KB | PDF: 工程用圖面 |  |
| 3D | 304D-2625XX | 70 KB | RAR: 3D檔 | |
