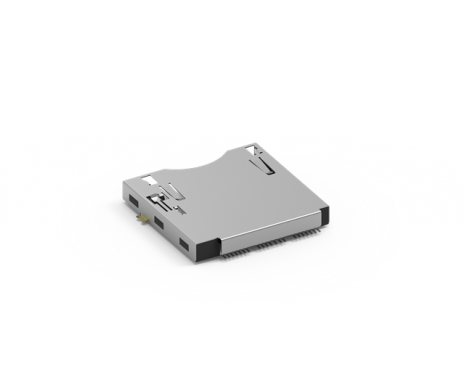

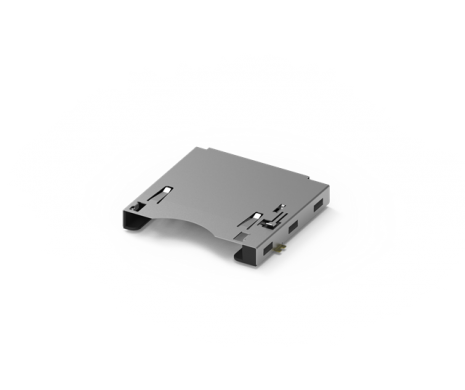

CFexpress Type B Socket, Push-Push Type
101M-TE10
CFexpress Type B Host Socket, Push-Push Type, 15u''
The next serious media format. Professional video feature are growing more powerful, with 4K video is widespread used and 8K video already gaining adoption in high-end production environments, CFexpress offers much superior speeds over current-generation media.
The next serious media format. Professional video feature are growing more powerful, with 4K video is widespread used and 8K video already gaining adoption in high-end production environments, CFexpress offers much superior speeds over current-generation media.
Share:
功能介紹
Comparison:
● CFexpress type B is smaller and faster than CFast.
● CFexpress is the next serious media format
● CFexpress type B is smaller and faster than CFast.
● CFexpress is the next serious media format
Application:
Medium to high-end professional devices making use of the faster data rates offered by CFexpress media.
● 4k/8k video device ● Consumer product
● Digital film Cameras ● Computers/servers
● High resolution portable device
Medium to high-end professional devices making use of the faster data rates offered by CFexpress media.
● 4k/8k video device ● Consumer product
● Digital film Cameras ● Computers/servers
● High resolution portable device
規格介紹
Current Rating | 0.5A |
---|---|
Voltage Rating | 5VDC |
Contact Resistance | 30mΩ |
Insulation Resistance | 1000MΩ |
Dielectric Withstanding Voltage | 500VAC |
Operating temperature range | -25℃~+85℃ |
---|
Recommended IR Reflow Temperature | 260℃ |
---|
