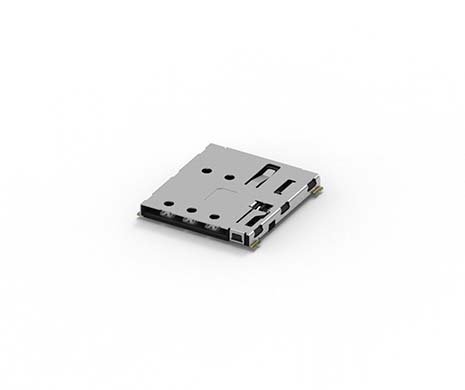

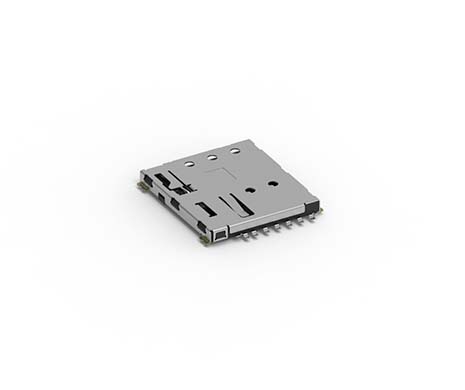

Nano SIM Socket, Push Push Type
115U-A103
Nano SIM Socket, Push Push Type, 6 Pin, H=1.4mm, G/F
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
Share:
功能介紹
APPLICATION:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
規格介紹
| Current Rating | 0.5A max. |
|---|---|
| Voltage Rating | 10VDC |
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 Cycle |
|---|---|
| Insertion Force | 10N Max. |
| Withdrawal Force | 0.5N Min. |
|---|
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
下載
| 類別 標題 文件類型 | 標題 | 大小 | 文件類型 | 下載 |
|---|---|---|---|---|
| 圖面 | 115U-A103 | 79 KB | PDF: 工程用圖面 |  |
| 3D | 115U-A103 | 610 KB | RAR: 3D檔 | |
| 規格書 | 115U-A103 | 312 KB | PDF:規格書 | |
